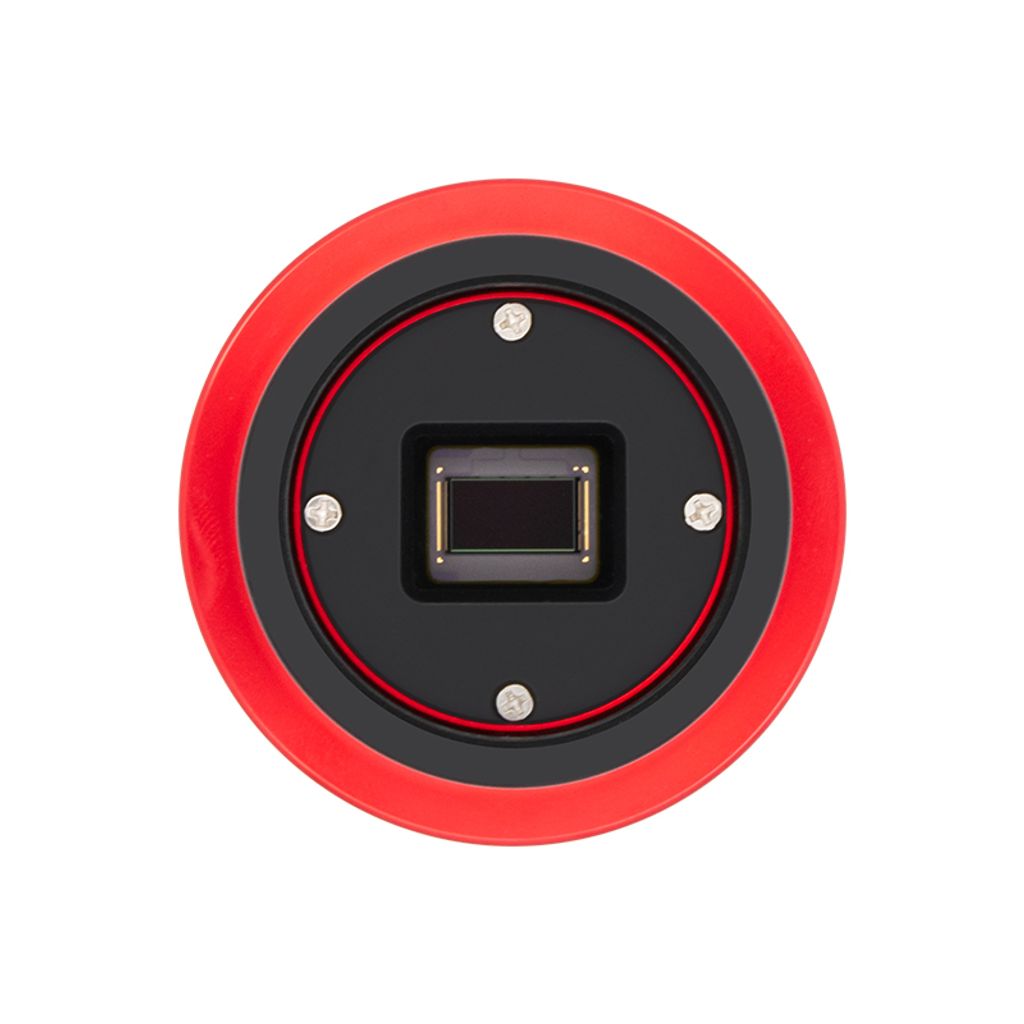

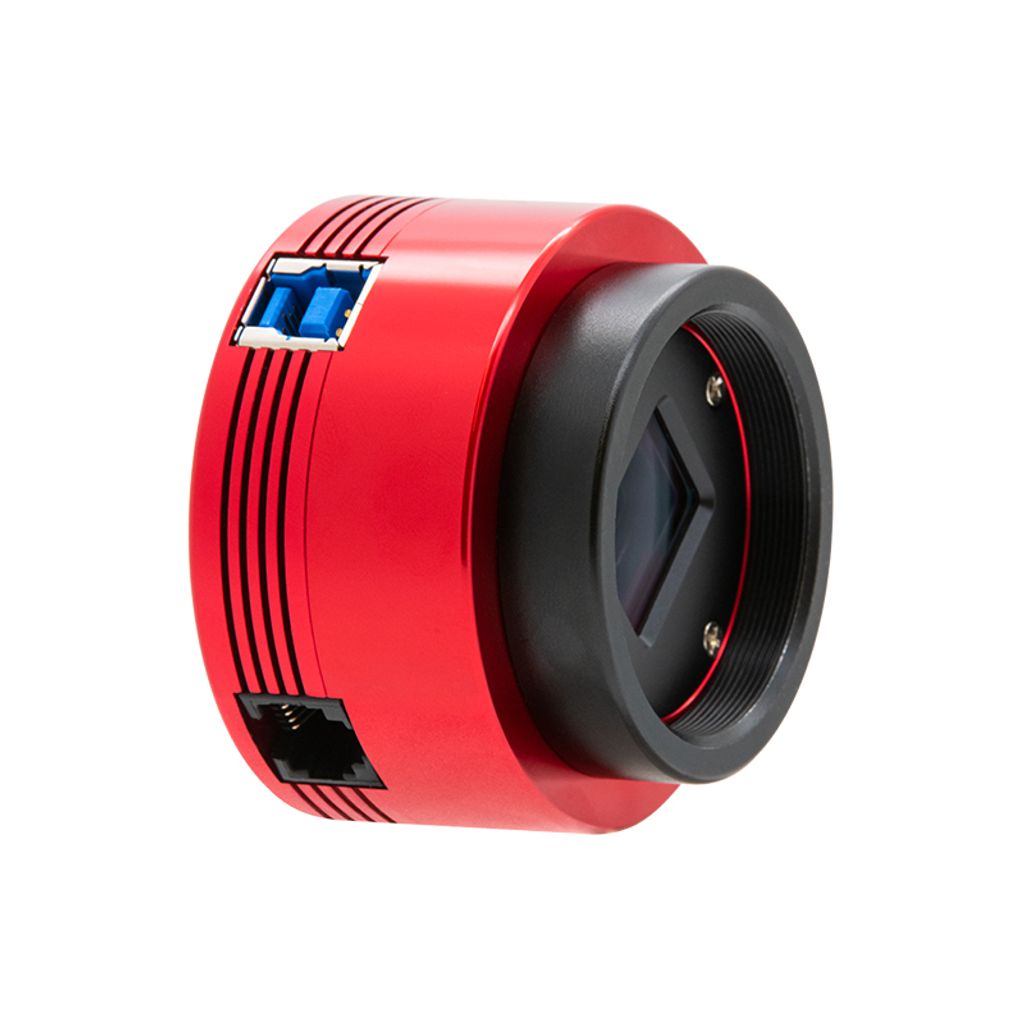

ZWO ASI 585MC Astronomy Camera

RM 1,871.00



ZWO ASI 585MC Astronomy Camera


EN-ASI585MC_02EN-ASI585MC_04EN-ASI585MC_05EN-ASI585MC_06EN-ASI585MC_07EN-ASI585MC_08EN-ASI585MC_09EN-ASI585MC_10EN-ASI585MC_11EN-ASI585MC_12EN-ASI585MC_13EN-ASI585MC_14EN-ASI585MC_15

Camera technical details

Sensor: 1/1.2″ CMOS Sony-IMX585AAQJ1-C
Bayer Pattern:R Gr Gb B

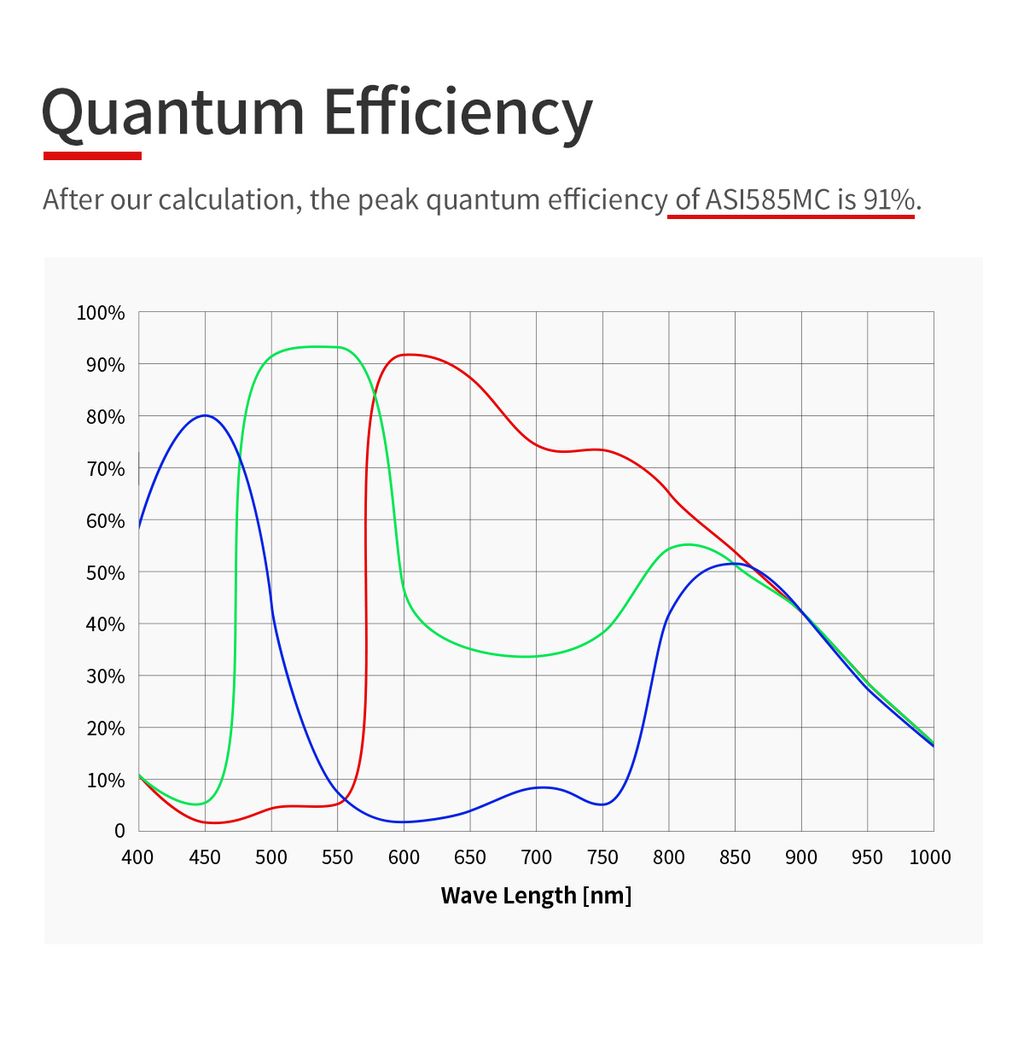

QE peak:91%
Back focus length: 6.5mm/17.5mm
Max fps: 46.9fps
Full well: 40Ke
Shutter: Rolling shutter
Resolution: 8.29Mega Pixel,3840*2160
Pixel Size: 2.9µm
Exposure Range: 32μs~2000s
Interface: USB 3.0 /USB 2.0 Type-B
Protect window: φ32-2 AR
ADC: 12bit
Dimension: 11.136mm*6.264mm
Weight: 126g
Working Temperature: -5℃~50℃
Storage Temperature: -10℃~60℃
Working Relative Humidity: 0-80%
Supported OS: WIN7/8/10 32&64、Linux、Mac
