ZWO ASI 174MM Mini Guide Camera
ZWO ASI 174MM Mini Camera

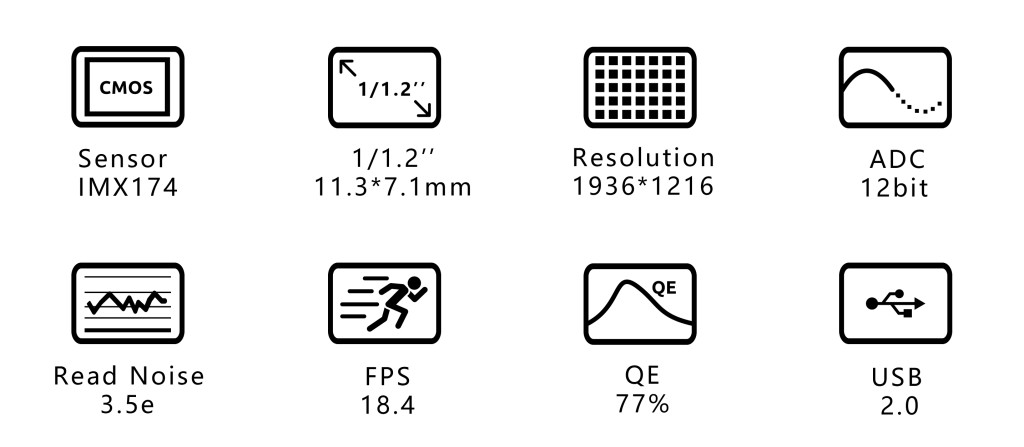

ASI174MM Mini camera integrates Sony IMX174LLJ 1/1.2″ sensor (11.3 mm x 7.1 mm). It is the first model in the “mini”-series of cameras from ZWO. This camera has 1936 x 1216 pixels with a pixel size of 5.86 μm x 5.86 μm. It camera provides 12-bit ADC and its QE peak is 77%.
ASI174MM mini camera offers you very good performance for planetary imaging as well as for guiding. Low read noise, high dynamic range, AR protective window and much more are just some of the key characteristics that set it apart from the competition.
Regarding the absolute QE Curve, we estimate the Peak Value is about 77%.
174Mini vs. 174MM

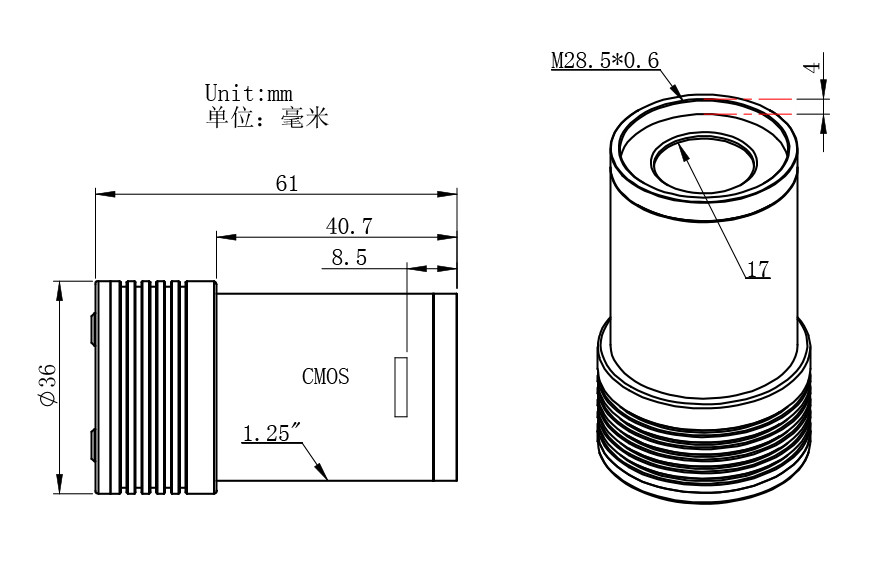

Compared with the ASI174MM camera, the new 174-Mini has a sleeker design, less weight, and it can reach focus at the same position as an eyepiece.
USB2.0Port & ST4 Port
USB 2.0 Port: Mini camera has one USB2.0 type-C port. Type-C port is very popular in mobile phones, as it doesn’t matter which way you connect it (unlike for example type-A or type-B)
#USB-C to USB-A cable is required.
ST4 Port: The camera can be connected directly to the auto-guider port of the mount.

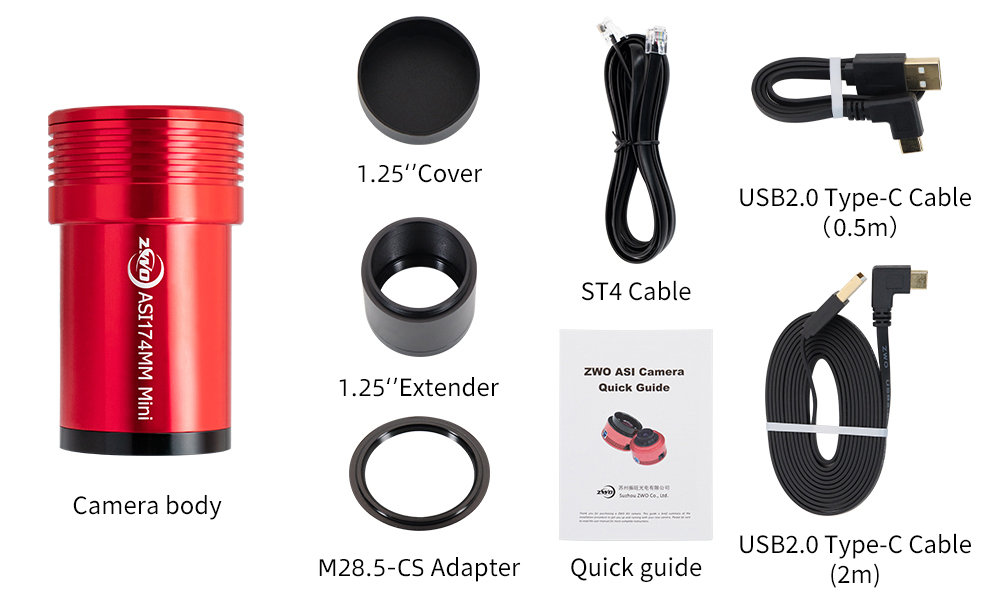

What is in the box?
ASI mini camera box includes all necessary cables, adapters, and manual.
Drivers and Softwares:
Our website is always updated with the most recent camera drivers as well as software for DSO and planetary imaging. Please make sure the most recent driver and software has been installed before you start shooting:
