ZWO ASI 120MM Mini Guide Camera (USED)
ZWO MALAYSIA OFFICIAL

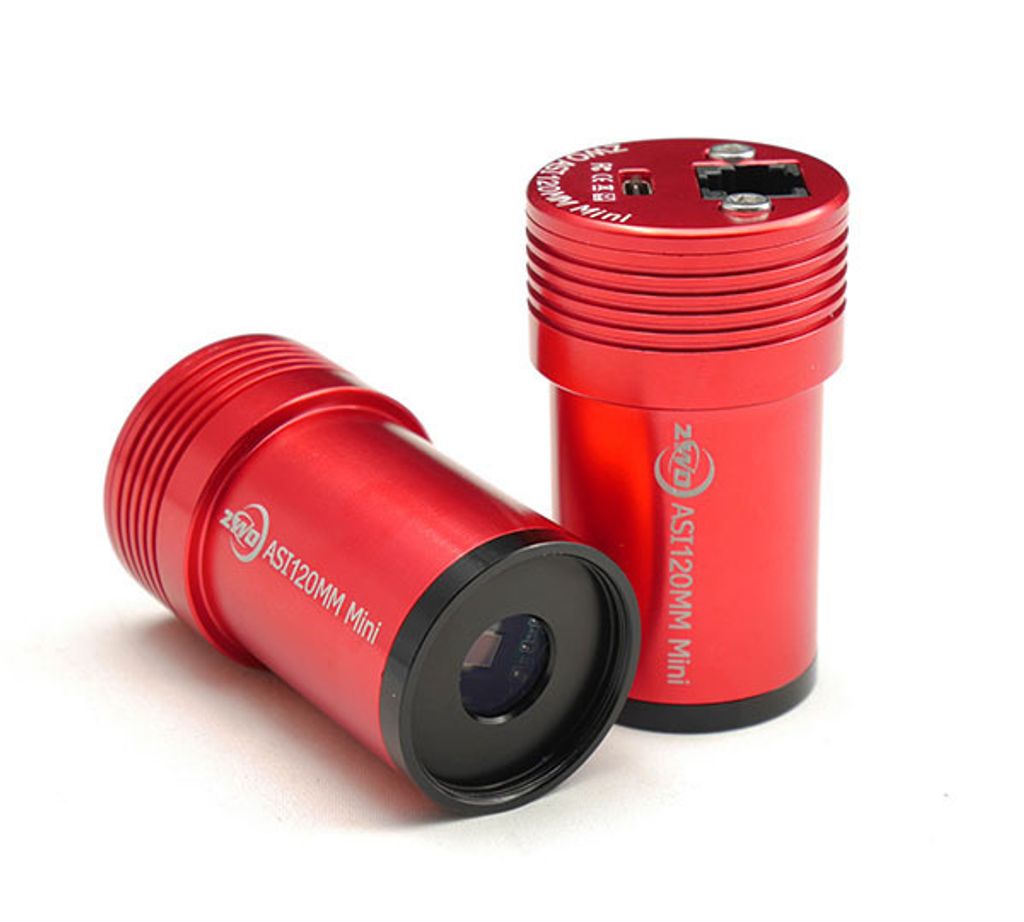

ZWO ASI120MM Mini
Used Like New Condition
ASI120MM Mini camera integrates AR0130CS 1/3″ sensor (4.8 mm x 3.6 mm). It is ZWO new mini camera. This camera has 1280 x 960 pixels. The pixel size is 3.75 μm x 3.75 μm. This camera provides 12bit ADC and its QE peak is almost 80%.
ASI120 mini camera offers you very good performance for planetary imaging and guiding. Low read noise, high dynamic range, AR protective window and much more.
Absolute QE Curve, we estimate the Peak Value is almost 80%.
120Mini VS 120MM-S
Compared with ASI120MM-S camera, 120mini have smaller outlook, lighter weight, and it can reach focus at same position with eyepiece.
USB2.0Port & ST4 Port
USB 2.0 Port: Mini camera has one USB2.0 type C port. Type C port is very popular in mobile phones, it will not care about positive side and negetive side of the adapter.
ST4 Port: Can connect mini camera direct connect to auto guide port of mount.
- M28.5-CS adapter
- CS-C adapter
- 1.25″ extender
- 1.25″ filter
What is in the box?
ASI mini camera box includes all necessary cables, adapters, and manuals.
