Touptek OAG Off Axis Guider - M48/54

RM 134.55

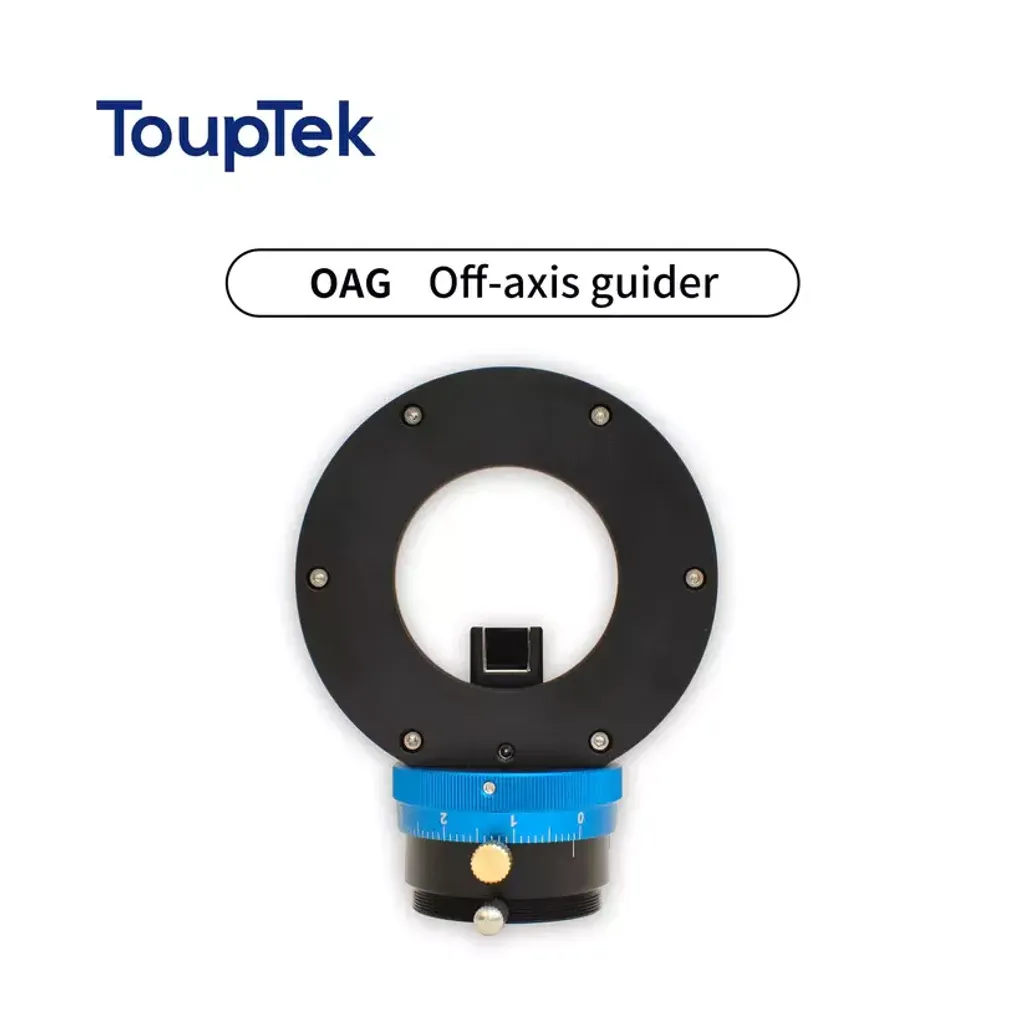

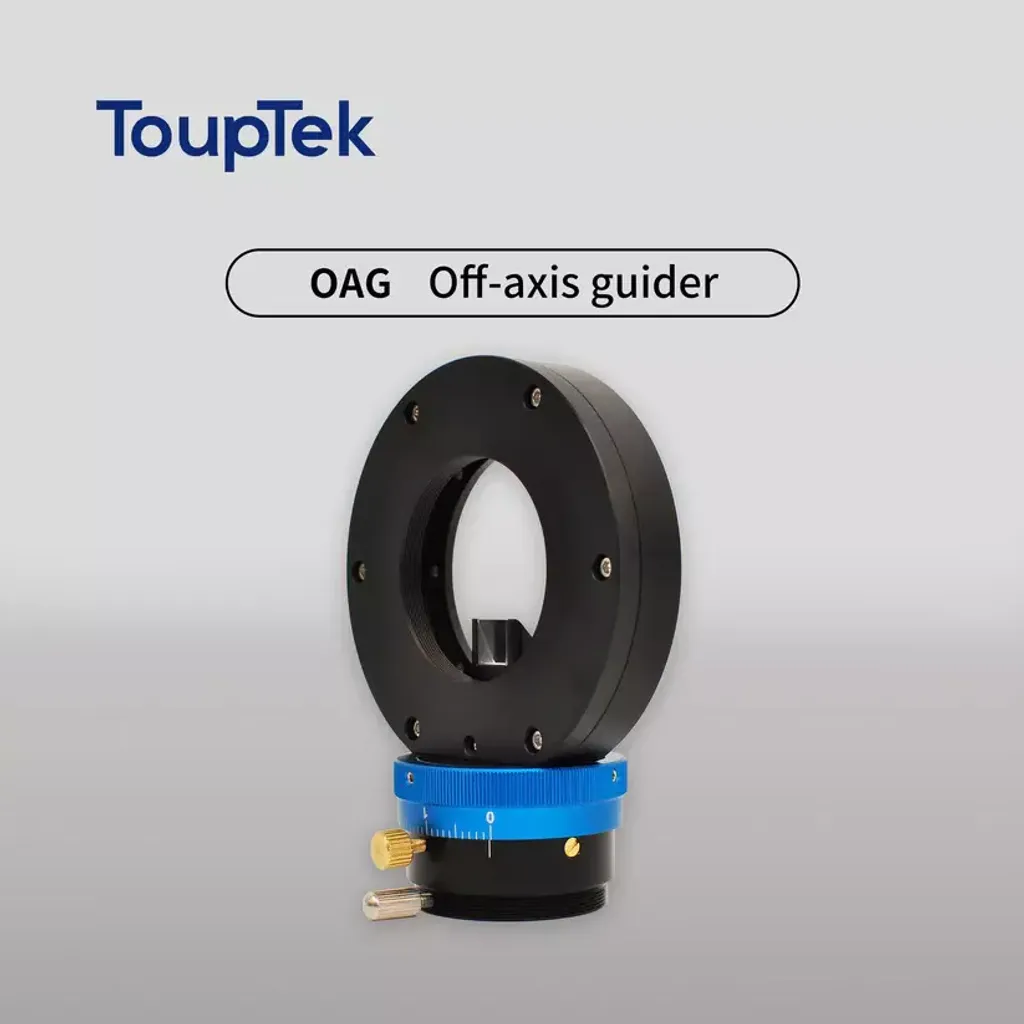

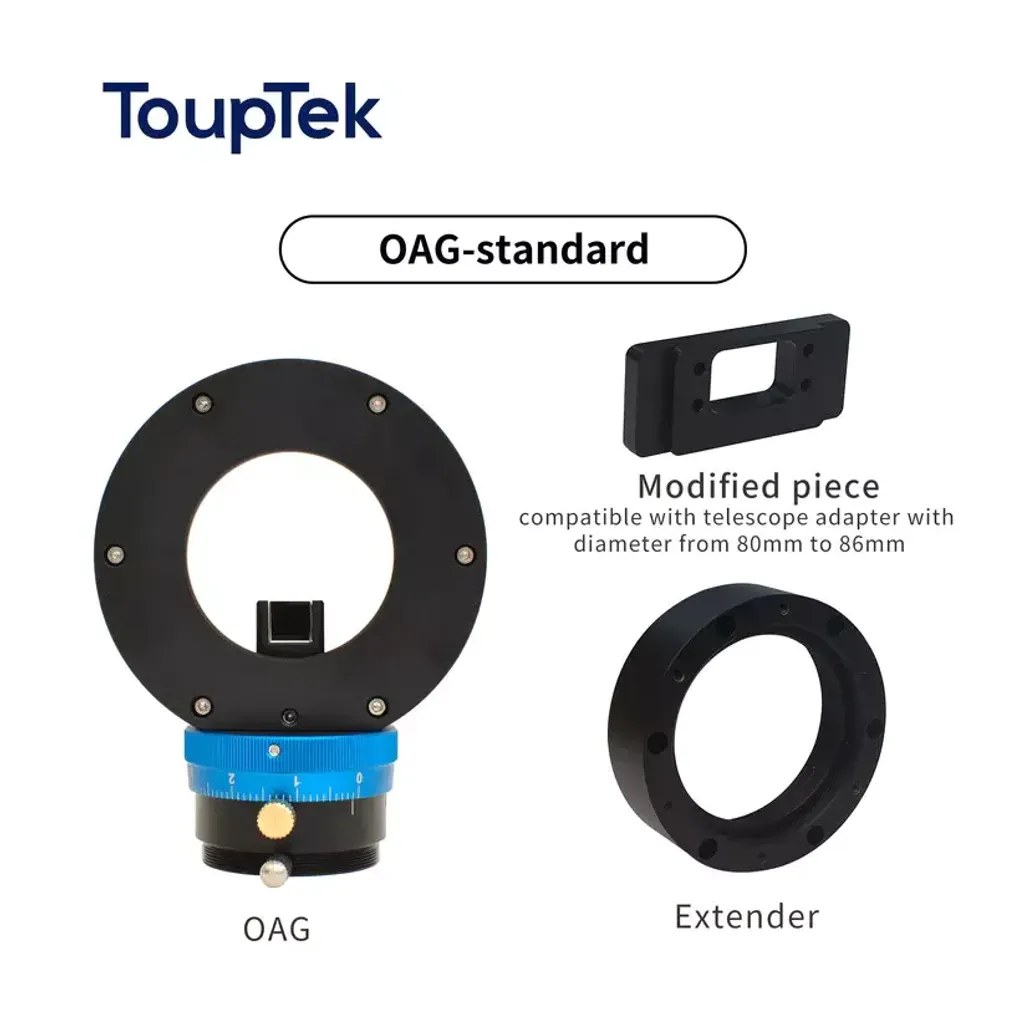

Touptek Off Axis Guider

Features M54 Female Thread On Camera Side With Screw Hole Which Can Directly Screw On To Touptek Camera Or ZWO Camera (Except For 183/585/533/294 Which Requires Optional M54M-M42M Adapter). Included Helical Focuser

Large 10*10mm Prism. Includes 20mm Spacer Which Is Compatible With ZWO Or Touptek Camera. Back-Focus With Ring Plate Is 17.5m

Connection Method With Filter Drawer Please Refer Filter Drawer Segment

Connection Method (To M48 Threaded Flattener/Reducer)

ZWO Camera 1'' Or 4/3 Sensor

Require Optional M54M-M42M 1mm Adapter (Screw To Side B - 0mm)
ZWO Camera M42 With 11mm Spacer Back Focus - 17.5mm
OAG Back Focus - 17.5mm
Filter Spacer Back Focus - 20mm
Total Back Focus - 17.5 + 20 + 17.5 = 55mm

ZWO Camera 2600MC/MM - Using M42 Thread

Require Optional M54M-M42M 1mm Adapter (Screw To Side B - 0mm)
ZWO Camera 2600MC/MM Back Focus -17.5mm
OAG Back Focus - 17.5mm
Filter Spacer Back Focus - 20mm
Total Back Focus - 17.5 + 20 + 17.5 = 55mm

ZWO Camera 2600MC/MM - Screw On To Plate

ZWO Camera 2600MC/MM Back Focus - 17.5mm
Filter Spacer Back Focus - 20mm
Total Back Focus - 17.5 + 20 + 17.5 = 55mm

ZWO Camera 2400/6200 - Using M54 Thread

Require Optional M54M-M54M 1mm Adapter (Screw To Side B - 0mm)
OAG Back Focus - 17.5mm
ZWO Camera 2400/6200 With Back Focus - 17.5mm
Filter Spacer Back Focus - 20mm
Total Back Focus - 17.5 + 20 + 17.5 = 55mm

ZWO Camera 2400/6200 - Screw On To Plate

ZWO Camera 2400/6200 Back Focus - 17.5mm
OAG Back Focus - 17.5mm
Filter Spacer Back Focus - 20mm
Total Back Focus - 17.5 + 20 + 17.5 = 55mm

Touptek Cooled Camera Connection - Using M42 Thread

Require Optional M54M-M42M 1mm Adapter (Screw To Side B - 0mm)
OAG Back Focus - 17.5mm
Filter Spacer Back Focus - 20mm
Camera Back Focus - 17.5mm
Total Back Focus - 17.5 + 20 + 17.5 = 55mm

Touptek Cooled Camera Connection - Screw On To Plate

OAG Back Focus - 17.5mm
Filter Drawer Back Focus - 20mm
Total Back Focus - 17.5 + 20 + 17.5 = 55mm
