Levenhuk M800 Plus Digital Microscope Camera

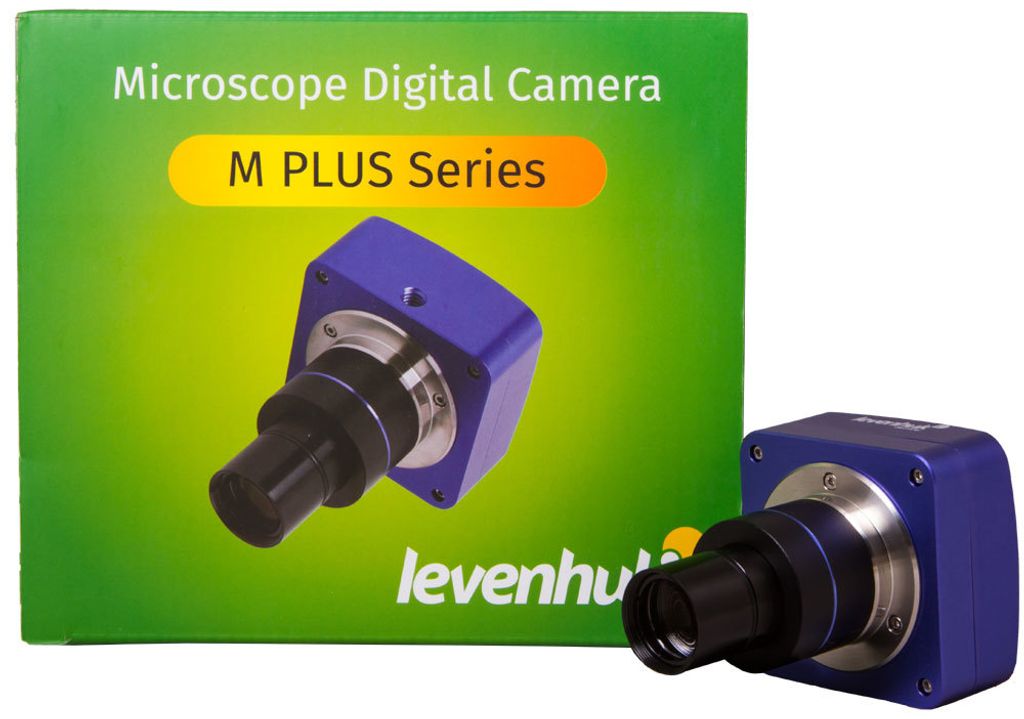

Levenhuk M800 PLUS Digital Camera
The Levenhuk M800 PLUS Digital Camera was designed for use with biological and stereoscopic microscopes. The 8-megapixel camera gives an image with a resolution of up to 3264x2448 pixels. You can choose the frame rate and create the smoothest videos with high detail and contrast.
The Levenhuk M800 PLUS Digital Camera is useful for the study of microscopic or volume samples. With its help, you can photograph interesting sections of the sample structure, record the life of microorganisms and demonstrate your observations to a wide audience. The digital camera is set in place of the standard eyepiece; if necessary, you can use an adapter (included). The kit includes a standard USB cable that is used to connect the camera to a computer, and the software for images and video processing.
The kit includes a CD with special software that allows you to edit previously saved images: zoom them, crop them, change the contrast, and so forth.
To ensure the best possible performance of your new camera, make sure your computer complies with the system requirements specified by the manufacturer. Compatible OS include Mac, Linux, and Windows. A USB 2.0 port is required to establish a connection.
If the software does not run on your computer, please contact us and specify your operating system and its version (for Linux: platform and kernel version).
The latest version of Levenhuk Software for Windows supports eight languages: English, French, German, Polish, Russian, Simplified Chinese, Traditional Chinese, Turkish.
Levenhuk Digital Camera is compatible with microscopes of 23.2-mm eyepiece tube diameter. The camera can also be mounted on eyepiece tubes of 30 и 30,5mm diameters using adapters, included in the kit.
The kit includes:
- Levenhuk microscope digital camera
- Adapter (23.2mm)
- 2 adapters for microscopes with different diameters of an eyepiece tube (23.2-30mm and 23.2–30.5mm)
- USB cable for connection to PC or laptop and power supply
- Installation CD with Levenhuk image editing software and the required drivers
- User manual and lifetime warranty
Specifications
| Maximum resolution | 3264x2448 |
| Megapixels | 8 |
| Sensor | 1/2.5'' CMOS |
| Pixel size | 1.67X1.67 |
| Exposure time, ms | 0.4-2000ms |
| Video recording | yes |
| Video Speed | 1.9@3264x2448 8@1600x1200 27@800x600 |
| Application | eyepiece tube of 23.2mm diameter, instead of the actual eyepiece |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | recording: *.wmv, *.avi, *.h264 (Win 8 or later), *h265 (Win 10 or later) |
| Spectral range | 380–650 (built-in infrared filter) |
| Method of exposure | ERS (Electronic Rolling Shutter) |
| White balance | auto/manual |
| Exposure control | auto/manual |
| Software features | image size, brightness, exposure time |
| USB features | USB 2.0, 480 Mb/sec. |
| System requirements | Mac OS 10.12, Linux Ubuntu 14.04, Windows Vista/7/8/10 (32bit or 64-bit), CPU IntelCore 2 or above; RAM 2GB, USB port 2.0, CD-ROM. |
| Software | Levenhuk |
| Casing | metal |
| Power supply | via USB 2.0 cable |
| Operating temperature range, °C, °F | -10... 50°C; 14… 122°F |
Includes Items
- Levenhuk microscope digital camera
- USB cable for connection to PC or laptop and power supply
- Installation CD with Levenhuk image editing software and the required drivers
- User manual and lifetime warranty
