Levenhuk DTX500 Mobi Digital Microscope

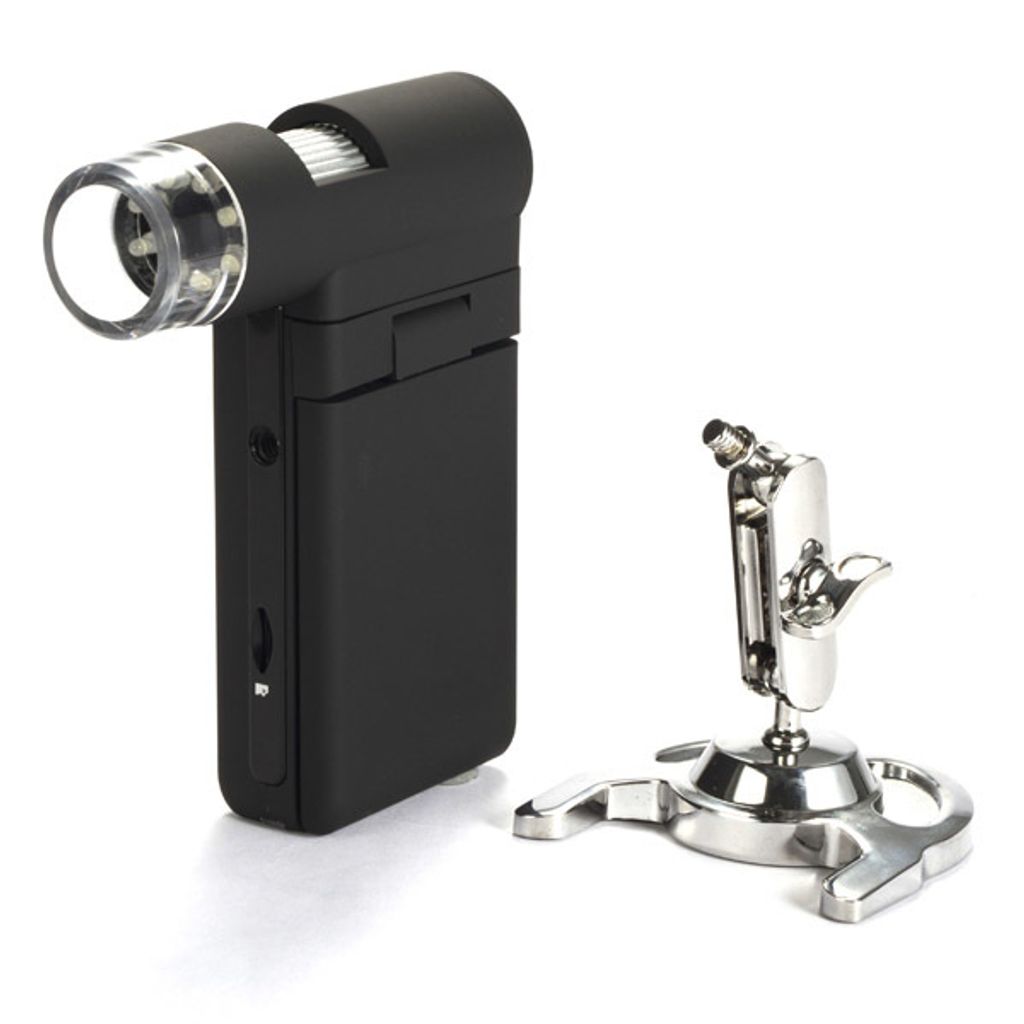

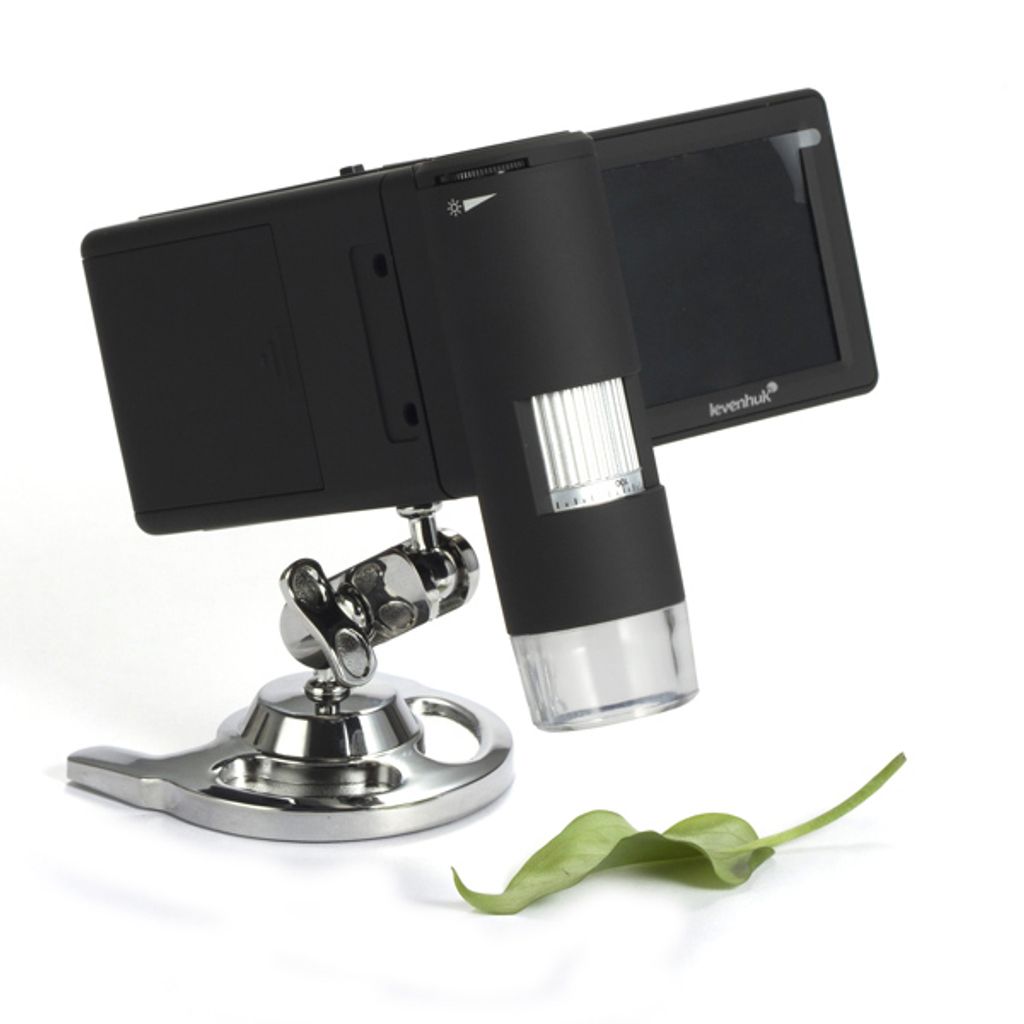

Levenhuk DTX 500 Mobi Digital Microscope
Levenhuk DTX 500 Mobi is a portable microscope with a built-in 3-inch color LCD display. This model produces magnification up to 400x and features smooth digital zoom up to 4x. Levenhuk DTX 500 Mobi is perfectly suited for microscopic observations of any surfaces, both at home and outside. All of this makes this microscope an excellent gift for any schoolchild.
Levenhuk DTX 500 Mobi Digital Microscope allows you to easily take pictures and record videos of observed objects. All files created during your observations are stored to the microSD card. All you need to do to transfer your images and videos to your PC is connect the microscope to it using the USB cable included in the kit. The kit also includes special software allowing you to edit created files and perform precise measurements of linear sizes, radiuses and angles with an accuracy of 1 micrometer or better.
Levenhuk DTX 500 Mobi Digital Microscope is powered by the Li-ion battery included in the kit, which provides for up to 4 hours of standalone work.
Microscope’s body is rubber-armored, which makes it pleasant to the touch and also provides for a comfortable grip and prevents the device from slipping out of your hands.
Specifications
Head | Rotatable 3” color LCD display |
Optics material | glass |
Magnification, x | 20–500 |
Focus | manual, 0-30 mm |
Illumination | 8 white LED lights |
Power supply | 110V, 50/60 Hz; 5 V, 1 A output Li-ion, 3.7 V,1050mAh battery work time: 4 hours; charging time: 5 hours |
Weight, kg | 0.7 1.5 (with the battery) |
Dimensions, mm | 330x70x150 13.0x2.8x5.9 |
Megapixels | 5 (interpolated to 12) |
Video recording | yes |
Speed | 30 fps |
Image format | *.jpeg |
Software | image processing software with measurement function |
Camera slot | USB 2.0 |
System requirements | Windows XP/Vista/7/8/10, Mac 10.6~10.10 minimum P4 1.8 GHz, 512 Mb RAM 64 Mb video card, USB 2.0 port, CD-ROM |
Usage | General use product. May be used by kids over 3 years old. |
Ability to connect additional equipment | support of microSD cards with capacity up to 32 Gb (not included in the kit) |
Software language | English, German, French, Spanish, Russian, Italian, Portuguese, Polish, Dutch, Japanese, Korean, Chinese |
Video format | *.avi |
Application | School Research |
Maximum resolution | 12 Mpx, 8 Mpx, 5 Mpx, 3 Mpx, 1.3 Mpx, VGA |
Features
- Rotatable 3” color LCD display
- Support of microSD cards with capacity up to 32 Gb
- PC connection via USB 2.0 interface
- AV output for connecting to TV or projector
- Able to take photos/videos
- Automatic exposure and white balance
- 8 white LEDs with adjustable brightness
- 4x digital zoom
- Li-ion rechargeable battery
- Comes with special software for measuring linear sizes, areas, angles and radiuses of studied samples
- Сompatible with Windows and Mac OS

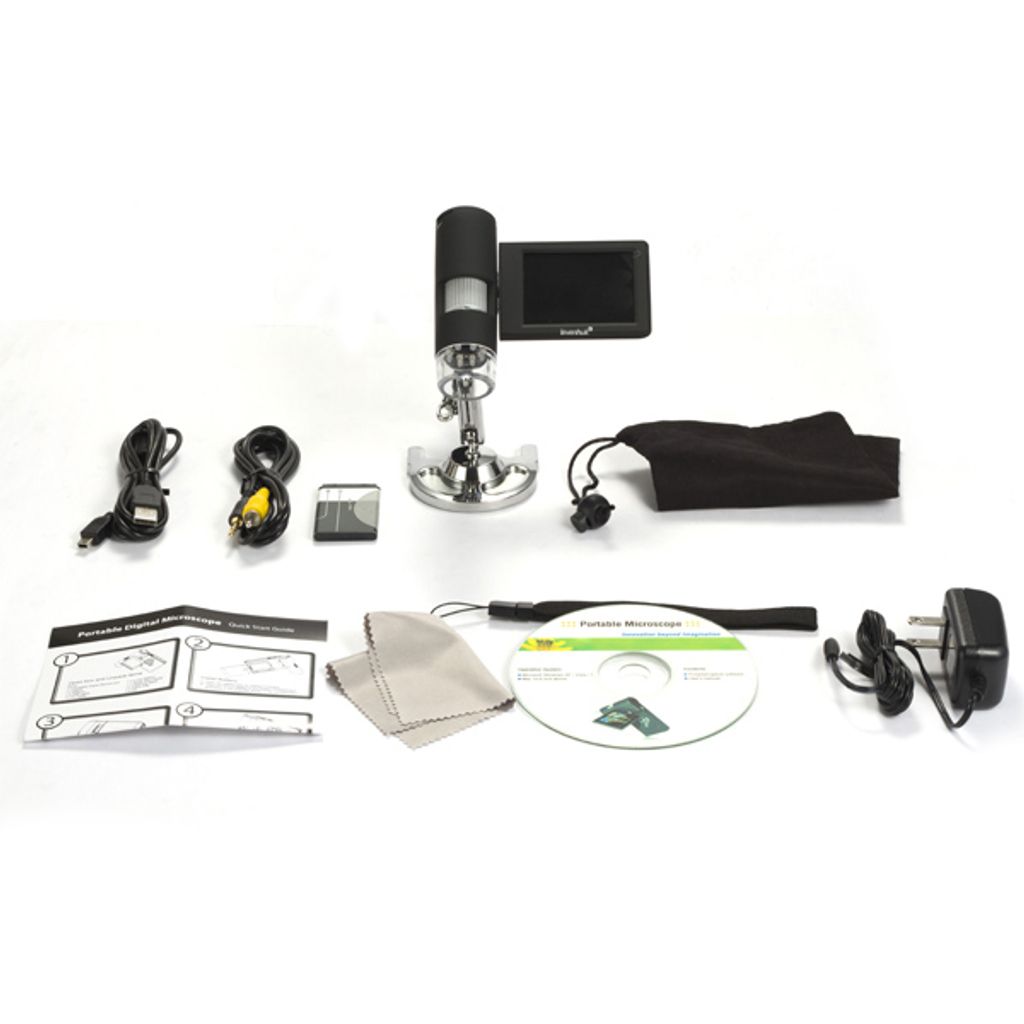

The kit includes
- Levenhuk DTX 500 Mobi Microscope
- Tripod
- Adapter*
- Software CD
- USB cable
- AV cable
- Li-ion rechargeable battery
- Pouch
- Strap
- Cleaning wipe
- User manual and lifetime warranty
Recommendations on using the software.
In order for the program to operate correctly, please launch the installed application only when your microscope is connected to a PC and ready for observations.
Levenhuk DTX 500 Mobi Digital Microscope is not compatible with external digital cameras.
*Caution: Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220-240V in most European countries.
