ZWO 30F5 Mini Guide Scope
ZWO 30F5 Mini Guide Scope
High-precision Guiding, Excellent Pinpoint Stars
ZWO 30mm F/5 APO Guide Scope features a lightweight and streamlined design. It is independently developed by ZWO to offer high guiding accuracy and stable tracking performance
Five Major Upgrades to Solve Guiding Challenges
- Upgraded high-precision, non-rotating helical focuser
- Extended focal length for sharper guide stars
- Upgraded APO optical system for a more regular optical path
- Sleek new look
- High compatibility and easy installation
Professional-grade APO Optics Design
ZWO 30mm F/5 Guide Scope uses a professional apochromatic (APO) design with a built-in ED glass, achieving a more regular optical path and effectively reducing the impact of chromatic aberration on stars
Super Precise Guiding
Compared to the previous generation, the 30mm F/5 guide scope has been upgraded to a 150mm focal length. With the longer focal length, it further improves the guide star quality, providing a more stable a guiding and accurate performance
Precise Focusing Knob and Upgraded Rigid Structure

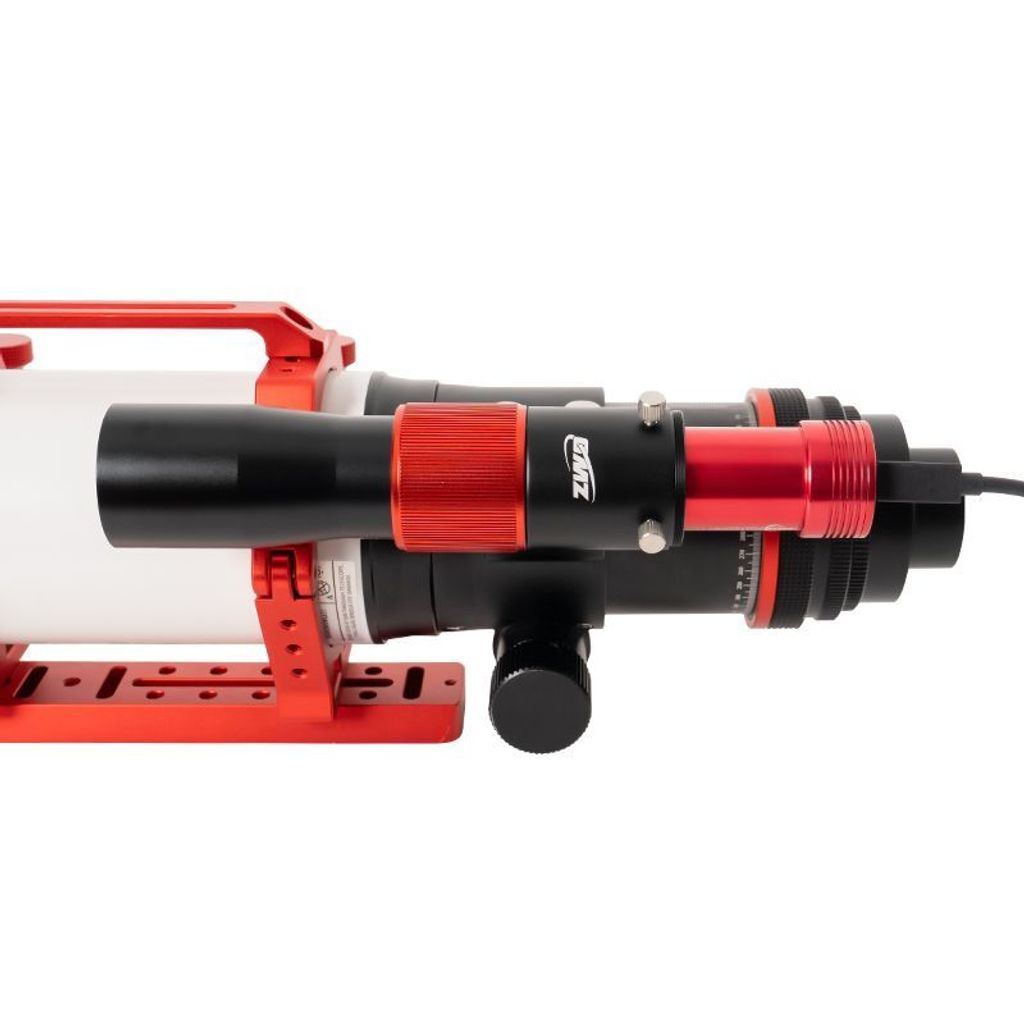

The non-rotating helical focuser allows for accurate focusing and ensures the focused orientation remains unchanged. The integrated holder further enhances overall rigidity. The quick-release guide scope dovetail plate enables users to rapidly install the guide scope, making it more convenient and easy to use
Usage Instructions
After installing the guide scope, unlock the locking screws. Rotate the helical focuser adjustment clockwise or counterclockwise until the image is clear
Specifications:
- Aperture: 30mm
- Focal length: 150mm
- F-ratio: f/5
- Optics: 3-element Apochromatic (APO) with ED glass, minimal chromatic aberration
- Recommended main scope: < 750mm
- Focusing mode: Helical focuser
- Weight: 348g
- Dimensions (mm): 155 x 44 x 73
