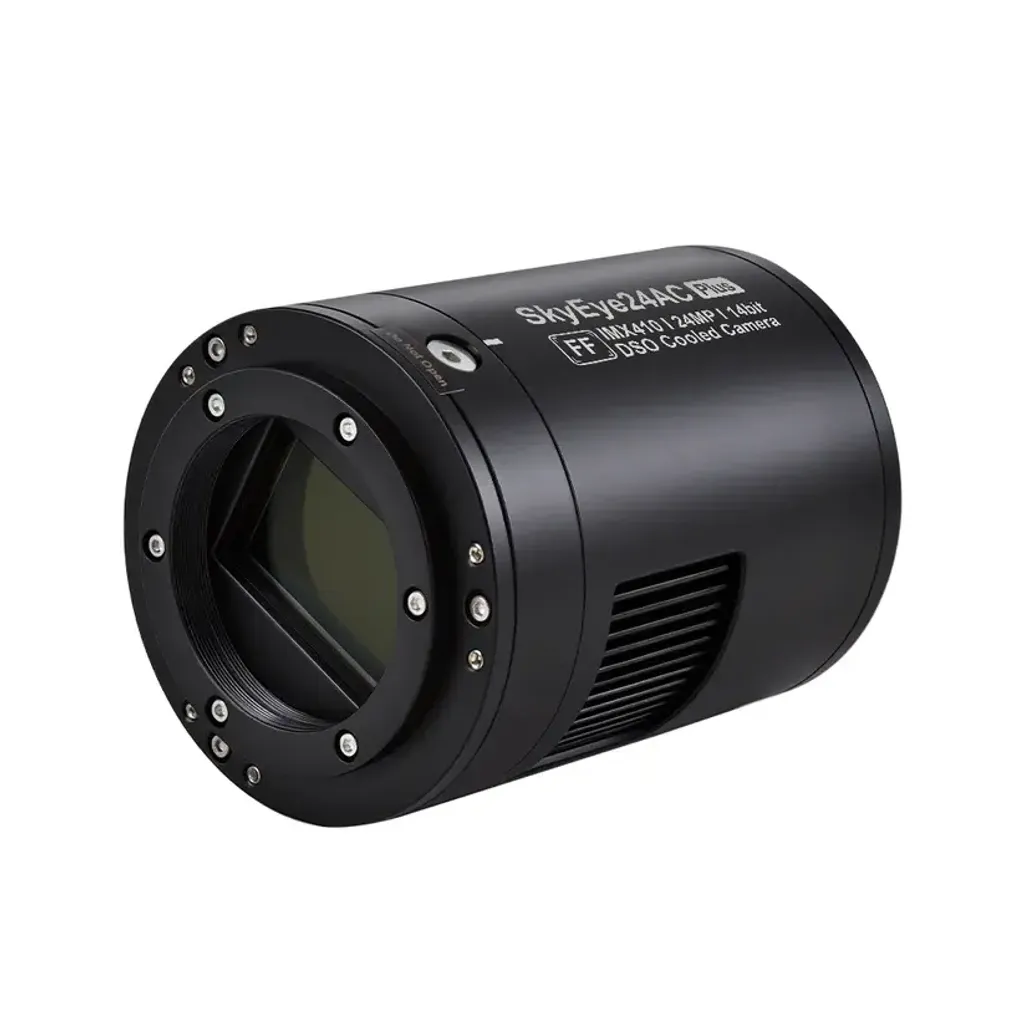

SkyEye24AC_AR_glass

Touptek Skyeye Plus 24AC Astronomical Camera

RM 7,999.00
View More

images

SkyEye24AC_Plus_head


SkyEye Plus 24AC Full Frame Back Illuminated Colour Camera. Designed With Larger Sensor Size Ideal For Longer Focal Length Telescope

Plus Series Upgrade The Original 24AC Version With Improvements

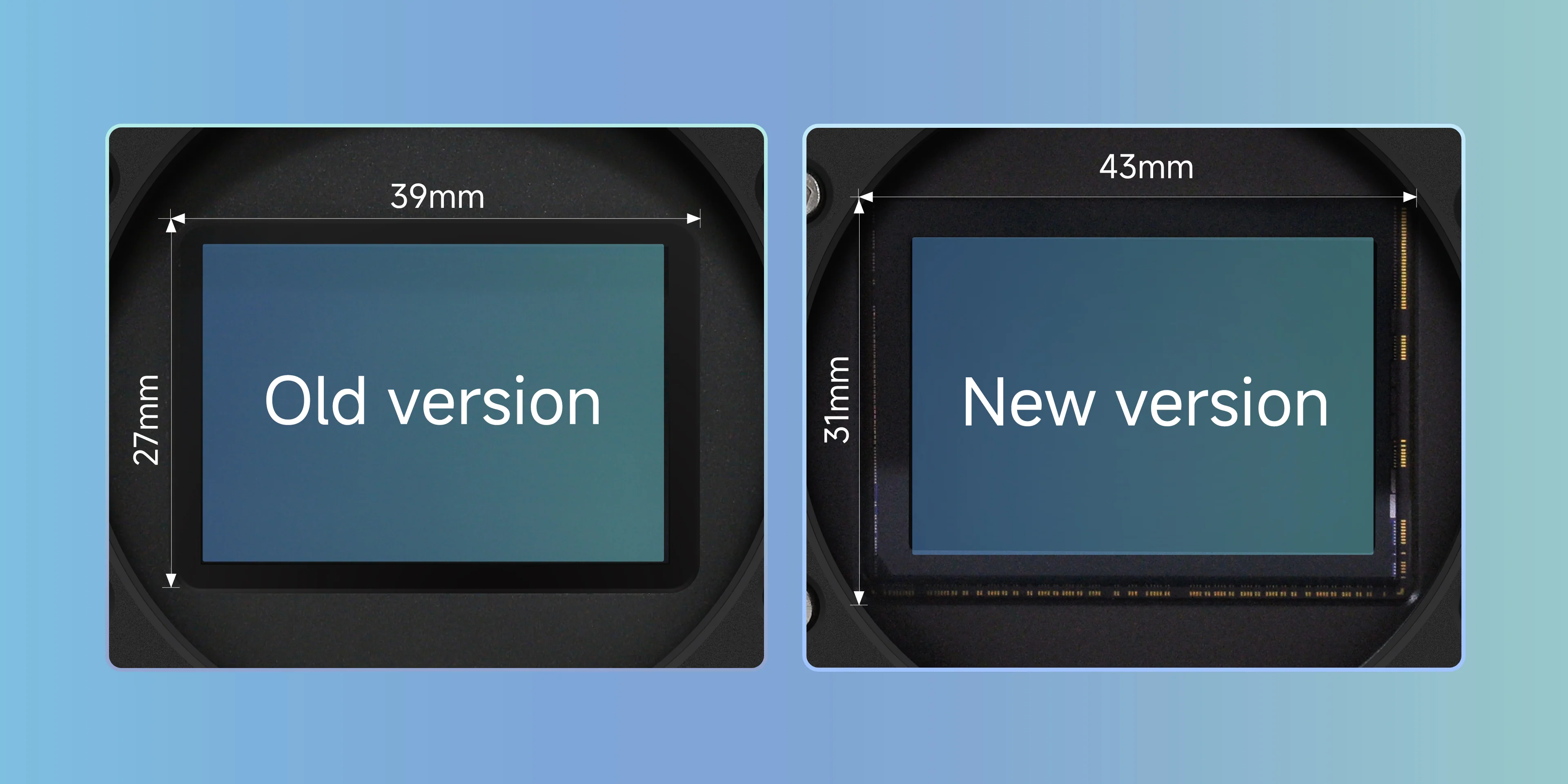

SkyEye24AC_Plus_Enlarged_Front_WindowLarger Sensor Window

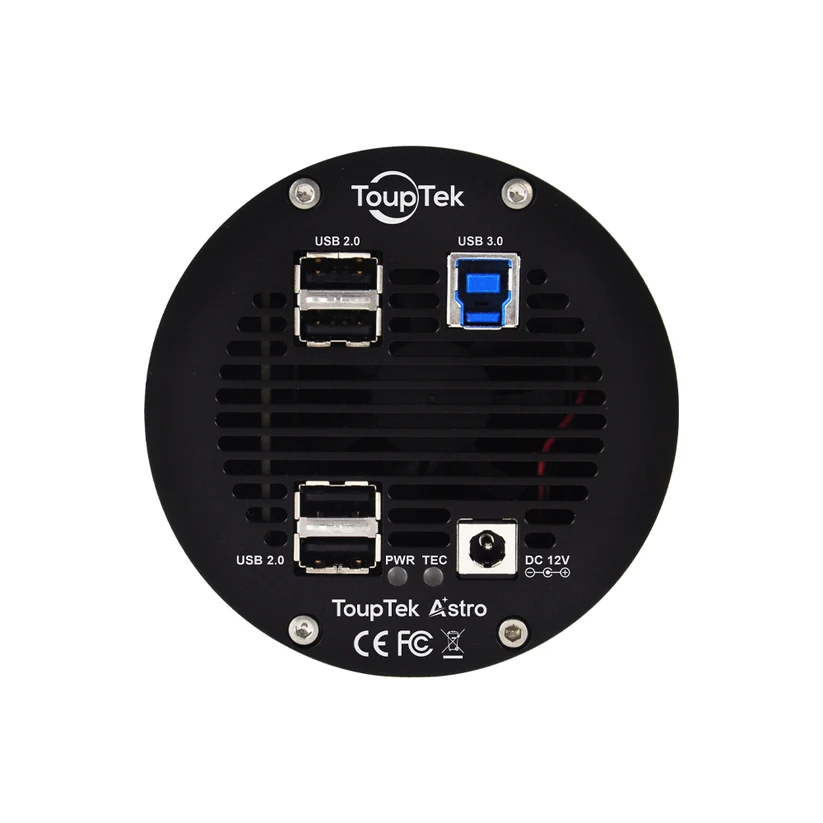

SkyEye24AC_Plus_44 USB 2.0 Port

SkyEye_Plus_Anti-Condensation_HeatingSmart Anti Dew Heater



Large 512MB DDR3 Memory Buffer Provides Higher Stability For Data Transfer

Built In Smart Anti Dew Heater With Sensor Provide Continuous Self Adjustment Based On External Temperature And Humidity

Supported On Native Driver And ASCOM Driver. Usable On Software Like NINA, APT, Sharpcap, Stellarmate, Firecapture Etc

Includes Carrying Case

Drivers And Software Available Here


Specifications

  • Sony IMX410 Full Frame Sensor Back-Illuminated
  • 24x36mm Sensor Size, 43.3mm Diagonal
  • 24MP Resolution 6064x4040 Pixel
  • 5.94µm Pixel Size
  • 512MB (4Gb) DDR3 Buffer
  • 14 Bit ADC
  • 16FPS At Max Resolution
  • 104K Full Well Capacity
  • Zero Amp Glow
  • AR Cut Window
  • > 80% Peak QE
  • -35/40°C Dual Stage TEC Cooling
  • Built In Smart Anti Dew Heater
  • 12v 3A Power Requirement
  • 17.5mm Back Focus
  • M54 Interface
