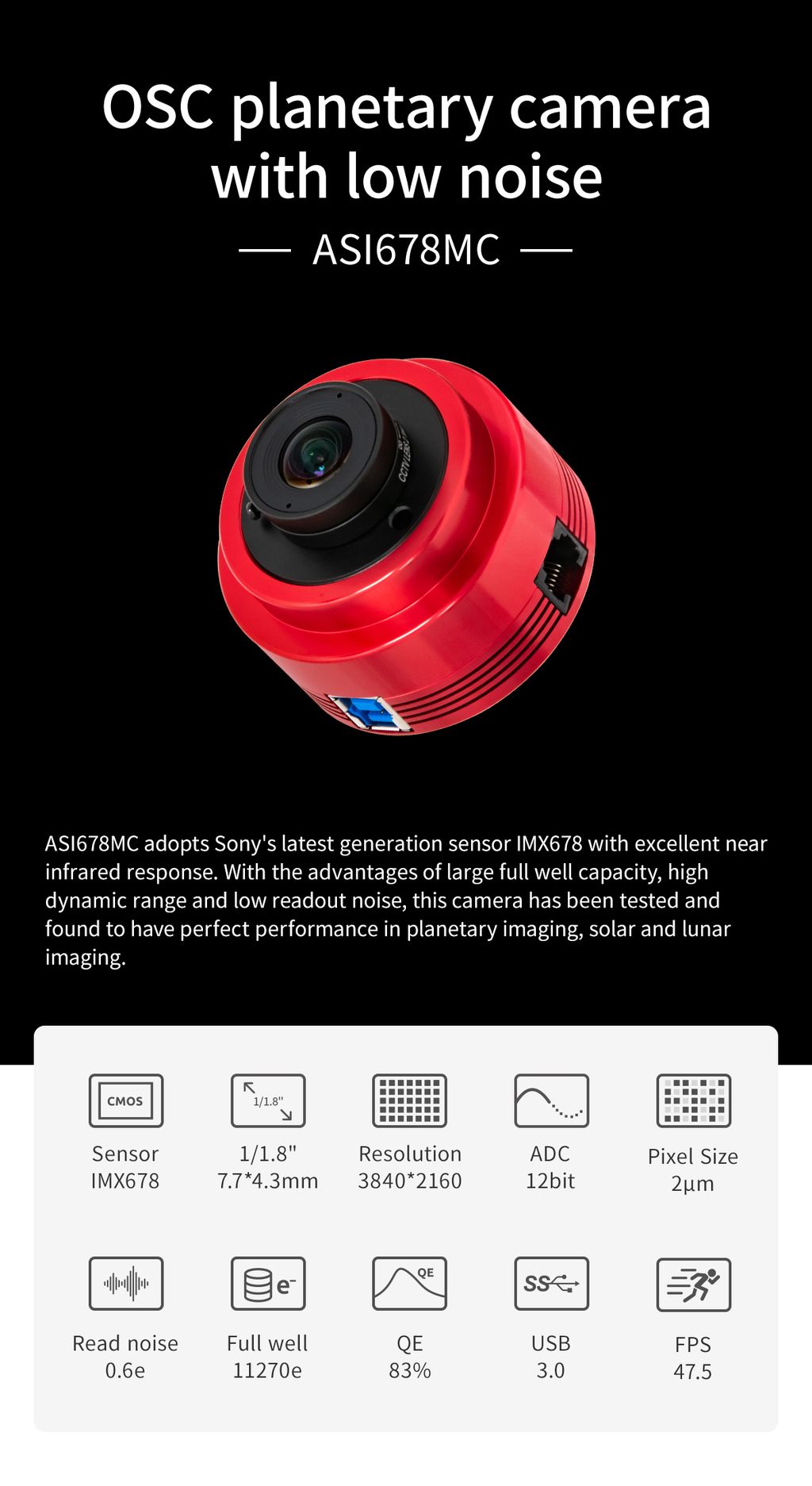

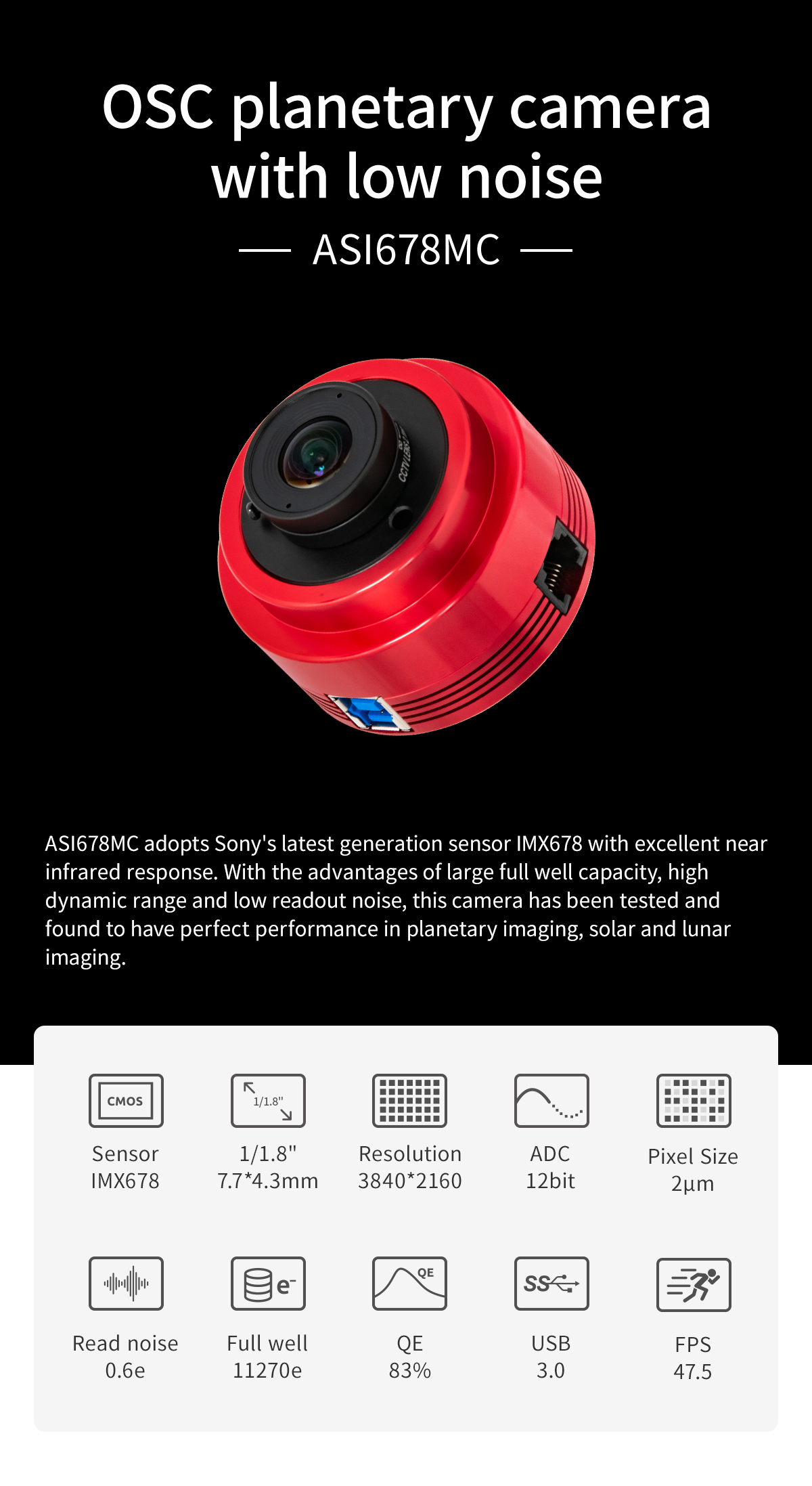

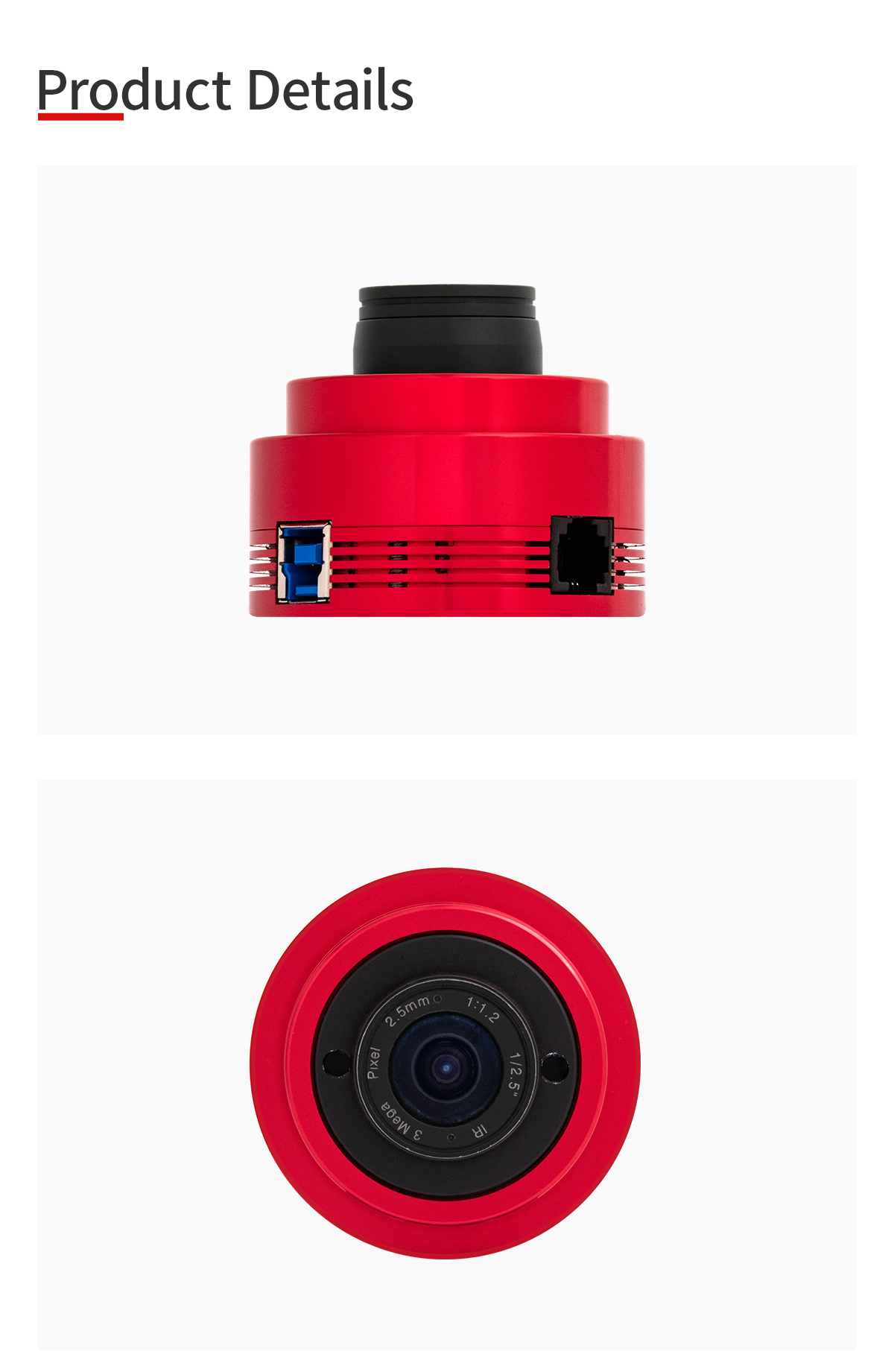

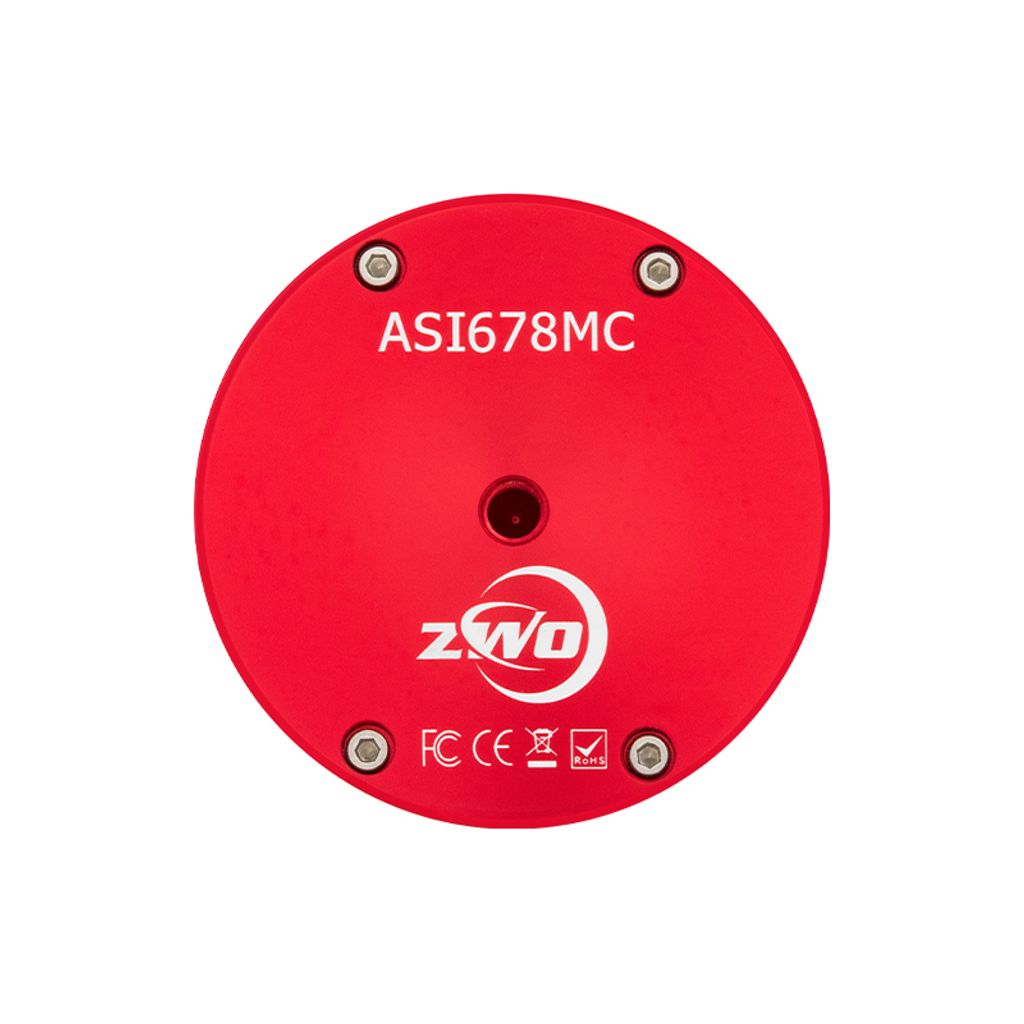

ZWO ASI 678MC Astronomy Camera

RM 1,402.00



EN-ASI678MC_01EN-ASI678MC_02EN-ASI678MC_03256DDREN-ASI678MC_04EN-ASI678MC_05EN-ASI678MC_06EN-ASI678MC_07EN-ASI678MC_08EN-ASI678MC_09EN-ASI678MC_10EN-ASI678MC_11EN-ASI678MC_12EN-ASI678MC_13EN-ASI678MC_14EN-ASI678MC_15

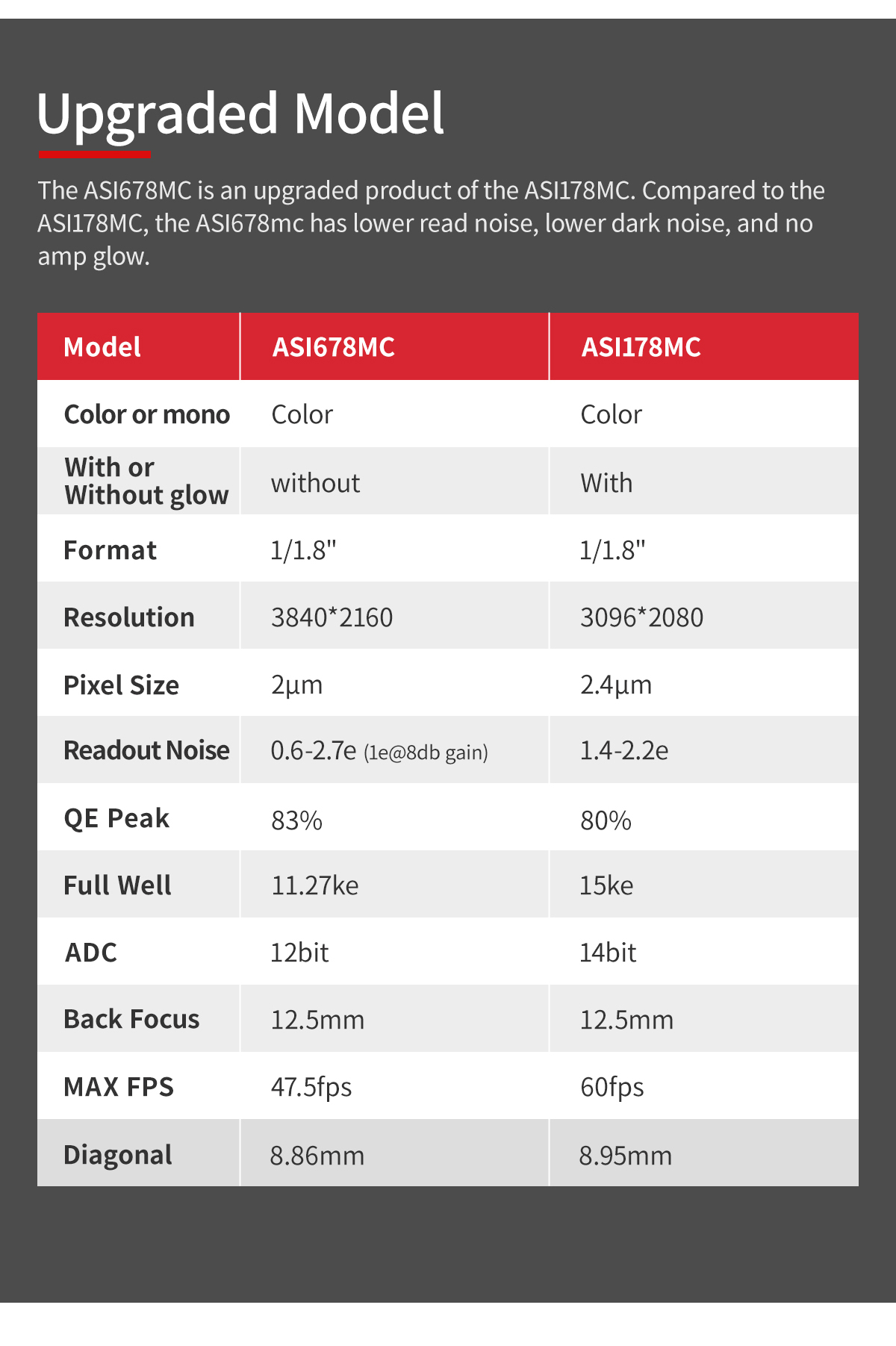

Camera technical details

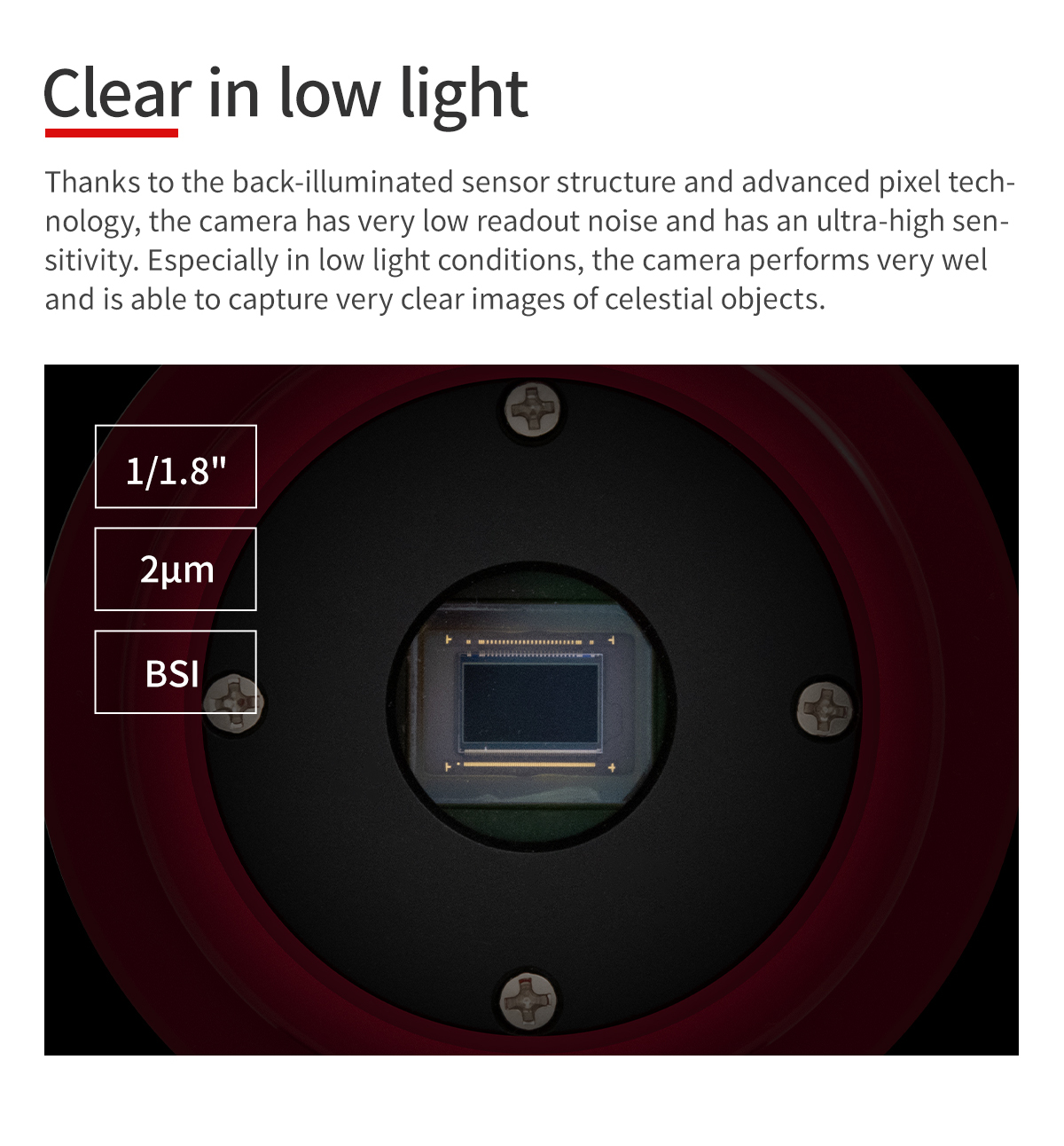

Sensor: 1 / 1.8″ CMOS Sony-IMX678AAQR1-C
Bayer Pattern:R Gr Gb B
QE peak:83%
Back focus length: 12.5mm
Max fps: 47.5fps
Full well: 11.27Ke
Shutter: Rolling shutter
Resolution: 8.29Mega Pixel,3840*2160
Pixel Size: 2µm
Exposure Range: 32μs~2000s

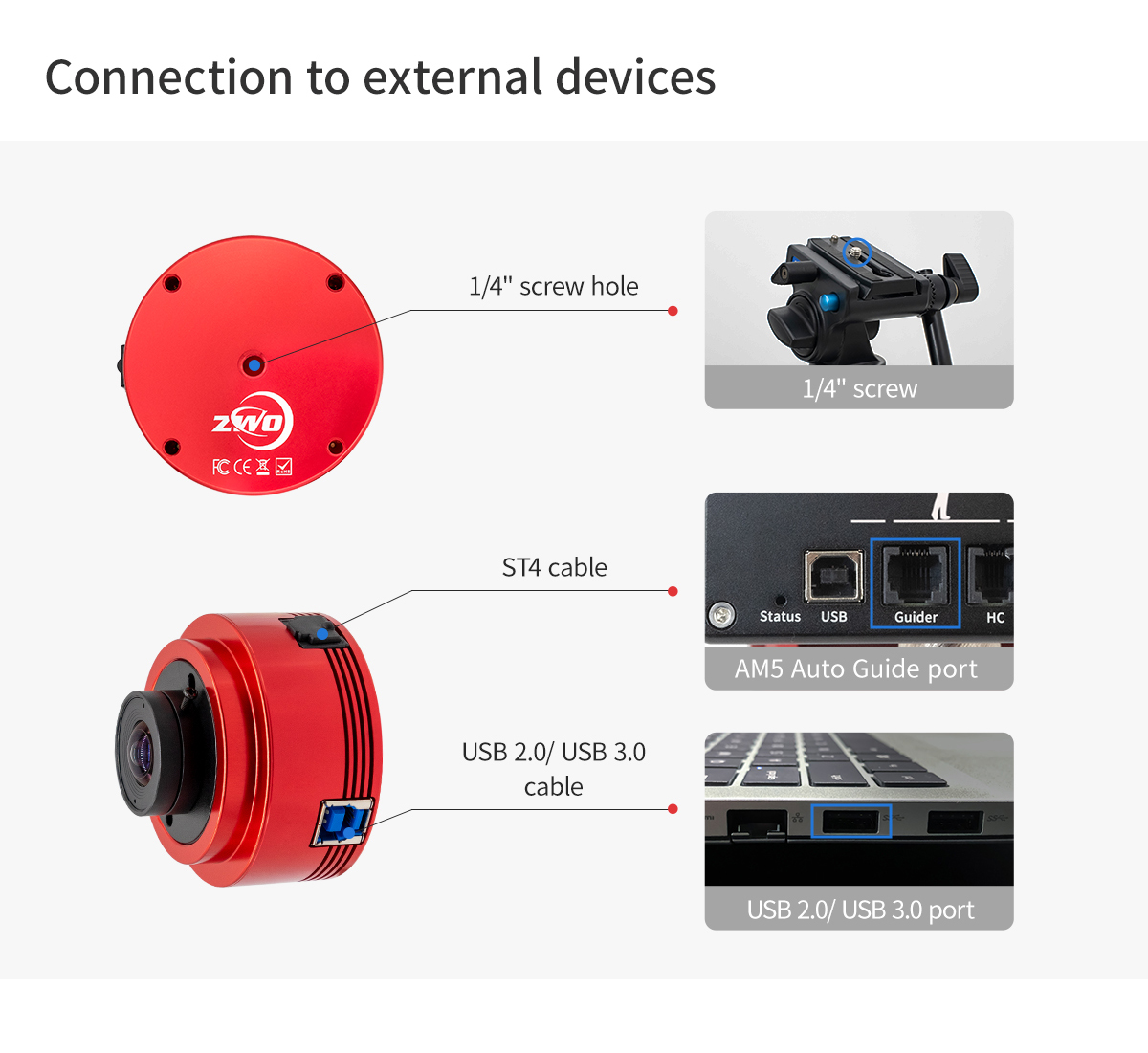

Interface: USB 3.0 /USB 2.0 Type-B
Protect window: φ21-1.1 IR
ADC: 12bit

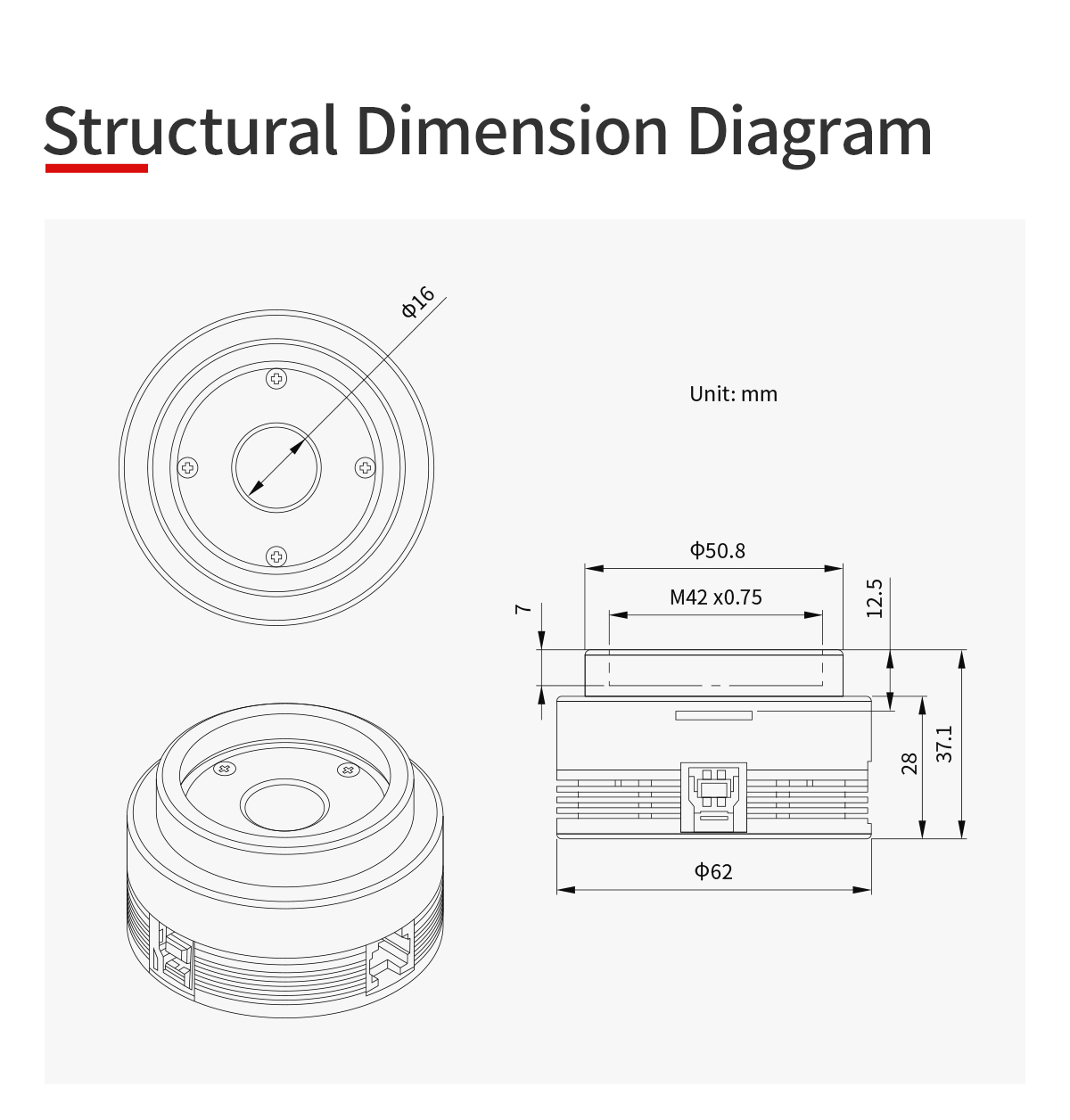

Dimension: 7.68mm*4.32mm
Weight: 126g
Working Temperature: -5℃~50℃
Storage Temperature: -10℃~60℃
Working Relative Humidity: 0-80%
Supported OS: WIN7/8/10 32&64、Linux、Mac
