ZWO CAA M42 Adapter

ZWO CAA M42 Adapter Allow Better Connection To M42 Female Based Camera Without Needing To Use M48M To M42F Ring. Please Note That ZWO CAA Come Default With Only M54 And M48 Adapter, While M42 Adapter Is Optional

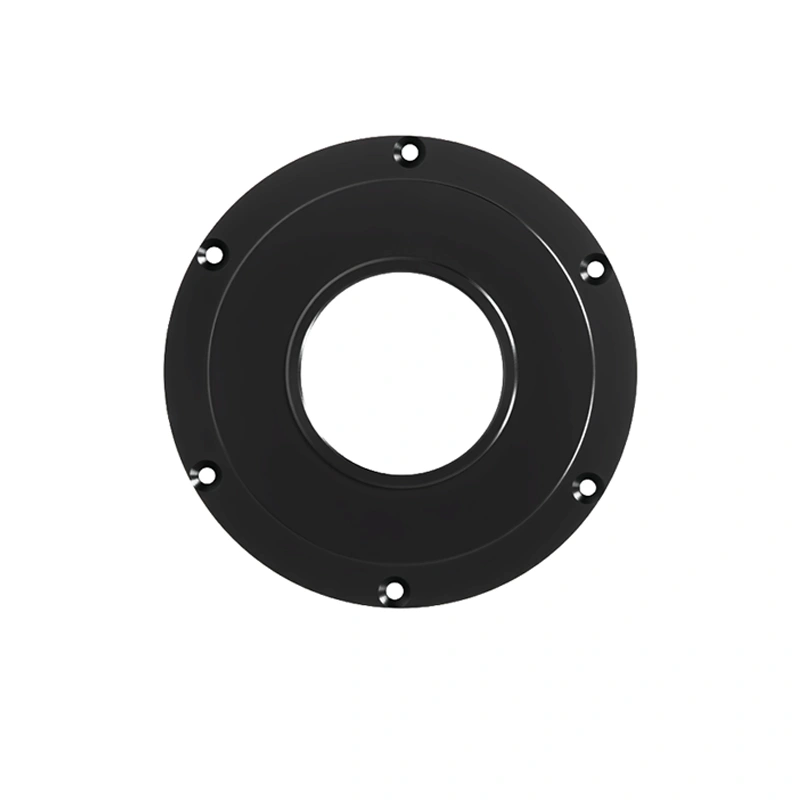

CAA-M42 Adapter

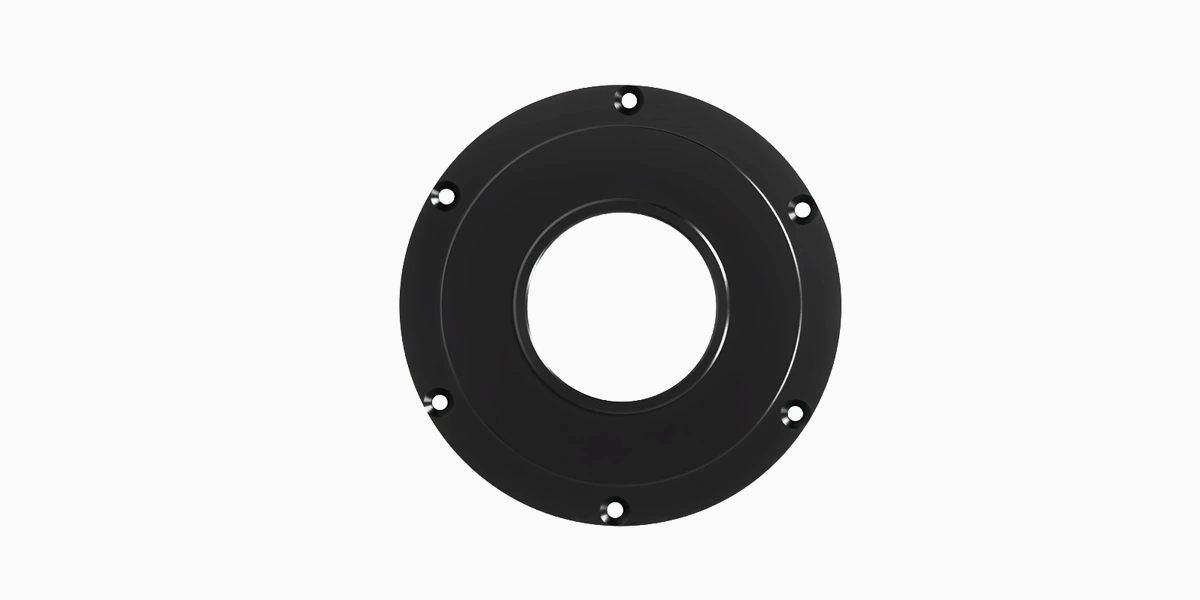

CAA-M42 Adapter

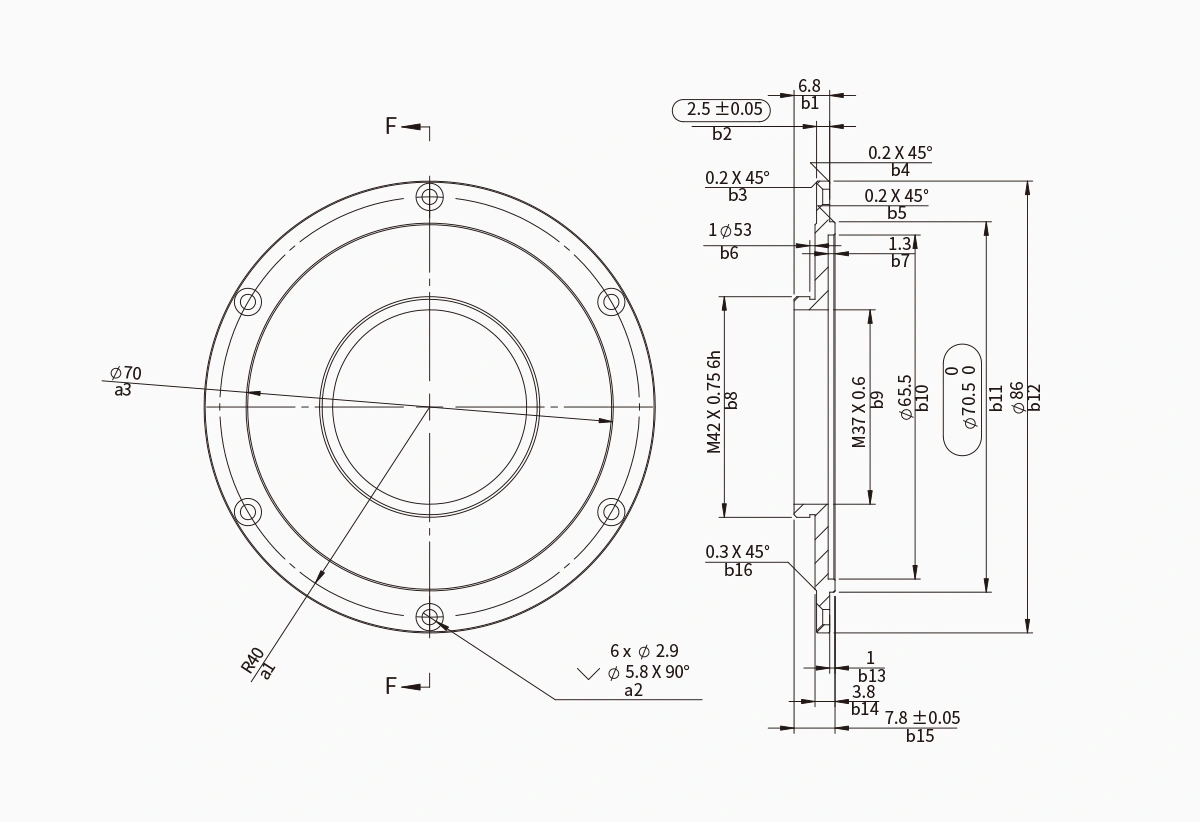

CAA-M42 Adapter structural dimension diagram

Connection

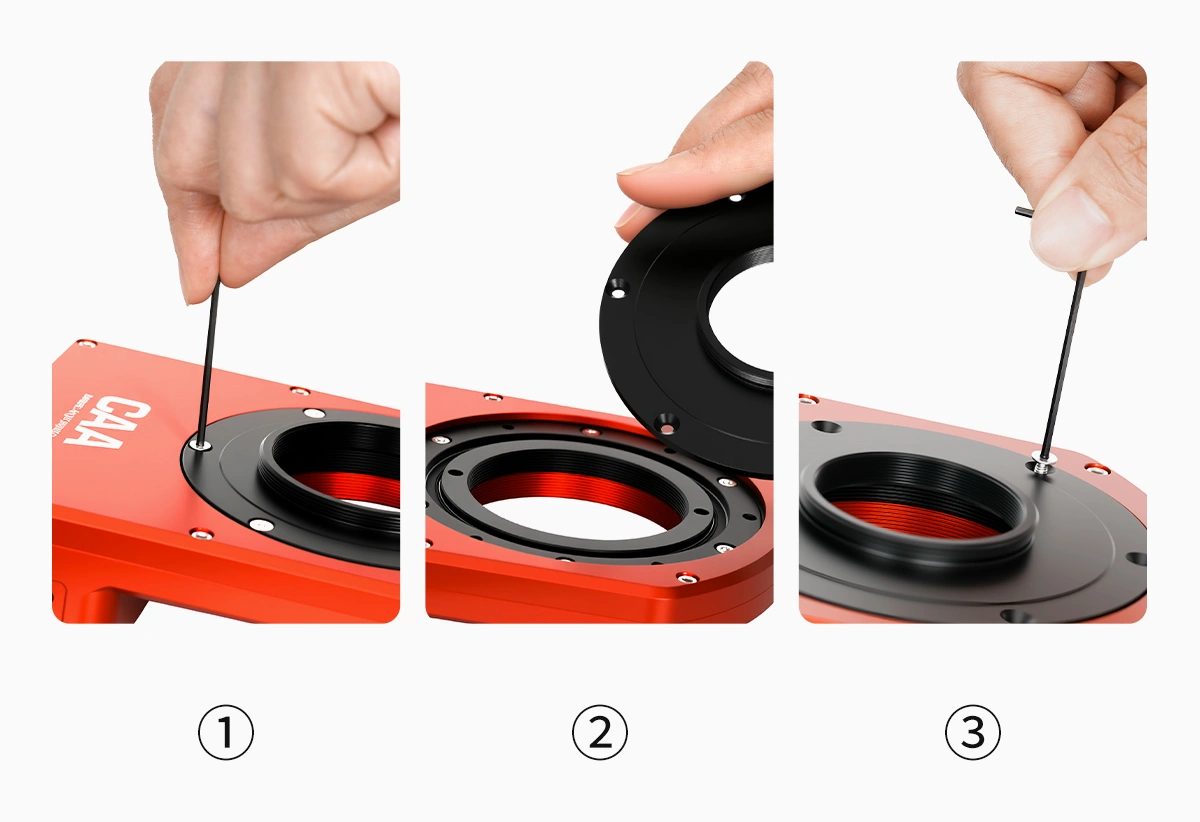

Steps to Replace the CAA Adapter (M54 to M42)
① Use the included wrench to remove the M54 adapter from the CAA body.
② Attach the M42 adapter to the CAA.
③ Tighten the screws to complete the replacement.
